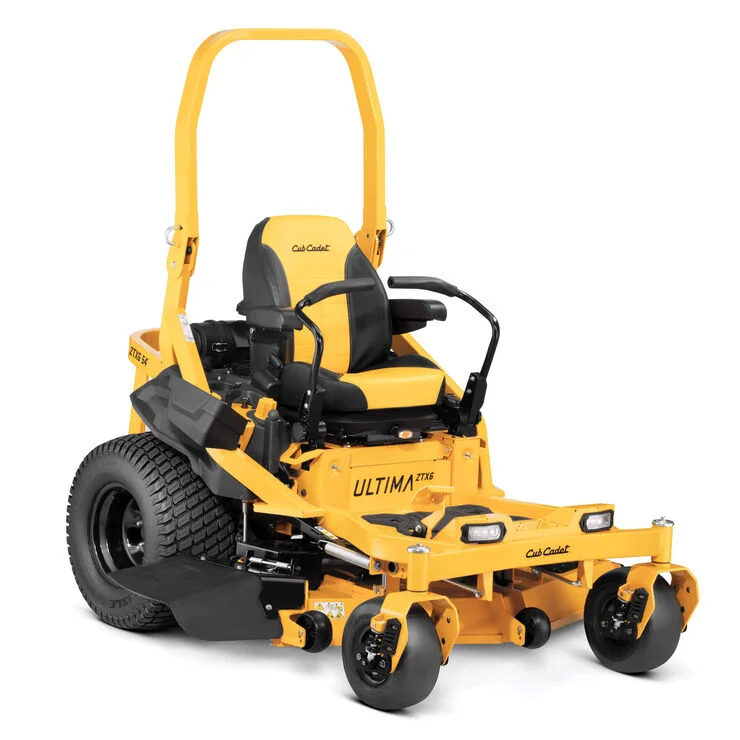

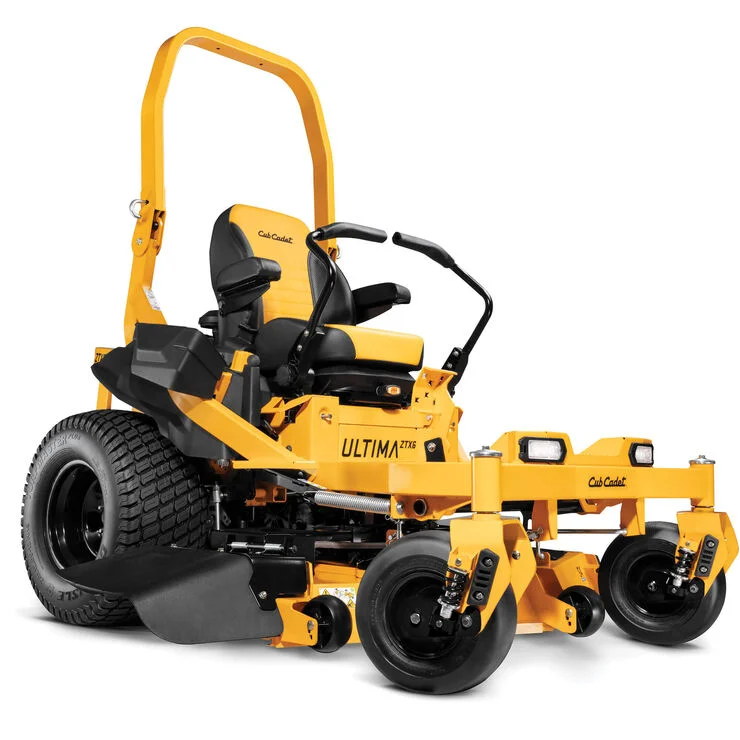

The Cub Cadet® Ultima Series ZTX6 54 is a 54-inch zero-turn lawn mower with a 25.5 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
- A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide strength and rigidity while allowing accessibility for easy routine maintenance
- Commercial grade 852cc/25.5 HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
- Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell
Engine
-
Engine Brand
Kawasaki®
-
Engine Model
FX Series
-
Engine Model Number
801V
-
Engine Displacement
852cc
-
Engine Output
25.5HP
-
Starter Type
Electric
-
Fuel Tank Capacity
5.5 gal. US (20.82 L)
-
Cylinders
Twin
-
Engine Start
Ignition Key
-
Engine Oil Capacity
2.1 qt US ( 2 L)
-
Lubrication
Fully pressurized
-
Charging System
15 amp regulated
-
Fuel Gauge
Yes
-
Governor
Mechanical
-
Choke
Separate Choke
-
Air Filter
Single element
-
Oil Filter
Yes
-
Fuel Delivery
Carburetor
Battery
-
Battery
230 CCA
-
Battery Type
Standard Lead-Acid
-
Battery Voltage
12V
Drive System
-
Transmission
Hydro-Gear ZT 3400 Charged
-
Forward Speed
9 MPH / 14.5 km/h
-
Reverse Speed
3.5 MPH / 5.6 km/h
-
Drive System
Hydrostatic
Cutting Deck
-
Deck Cutting Width
54 in
-
Deck Wash
No
-
Deck Material
10-gauge steel with 2-gauge reinforcement
-
Deck Engagement (PTO)
Electric
-
Deck Construction
Reinforced Fabricated
-
Blade(s)
Three
-
Deck Lift
Foot pedal with Dial Adjust
-
Cutting Height Range
1″ – 4.75″
-
Anti-Scalping
Three gauge wheels
-
Deck Positions
17
Chassis
-
Frame
1.5″ x 3″ tubular steel
-
Turning Radius
0°
-
ROPS
Yes
-
Rear Tow Hitch
Yes
-
Corrosion Protection
Yes
Controls
-
Cruise Control
No
-
Brakes
Disc
-
Steering Control
Lap Bars
Comfort
-
Seat Type
24″ high back
-
Armrests
Yes
-
Seat Adjustment
Lever
-
Front Caster Suspension
Yes
Wheels
-
Rear Tires
24″x 12″-12″
-
Front Tires
13″x 6.5″-6″
-
Tire Tread
Turf Master / Multi Trac
Specifications
-
Series
Ultima Series™ ZTX
Additional Specifications
-
Hour Meter
Yes
-
Mulch Kit
Available separately
-
Headlight(s)
Dual-LED
-
Cup Holder
Yes
-
Operator Presence System
Yes
-
Parking Brake
Lap Bar Integrated
-
Model Number
47TIAHA7A10
Warranty
-
Residential Warranty
4-year 800 hours
-
Frame Warranty
Lifetime Limited
-
Deck Shell Warranty
Lifetime limited
-
Commercial Warranty
4-year 800 hours
Disclaimers
-
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower
As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
