ZTX4 48 – Ultima Series ZTX
In Stock
$6,899.00
FREE Shipping
Call Support
(813) 590-7469
Email Support
support@bravton.com
FREE Returns >
- 30-day Free Returns
- Refund for lost packages / damaged items
Professional Service >
- 12-months warranty
- Customer Support
Security & Privacy
×100% Secure payment
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don’t share your credit card details with third-party parties, and we don’t sell your information to others.
- Payment methods
- Security Certification
Rating & Accreditation
Our website boasts exceptional ratings, all based on genuine user feedback.
Secure privacy
We protect your privacy and keep your personal details safe and secure.

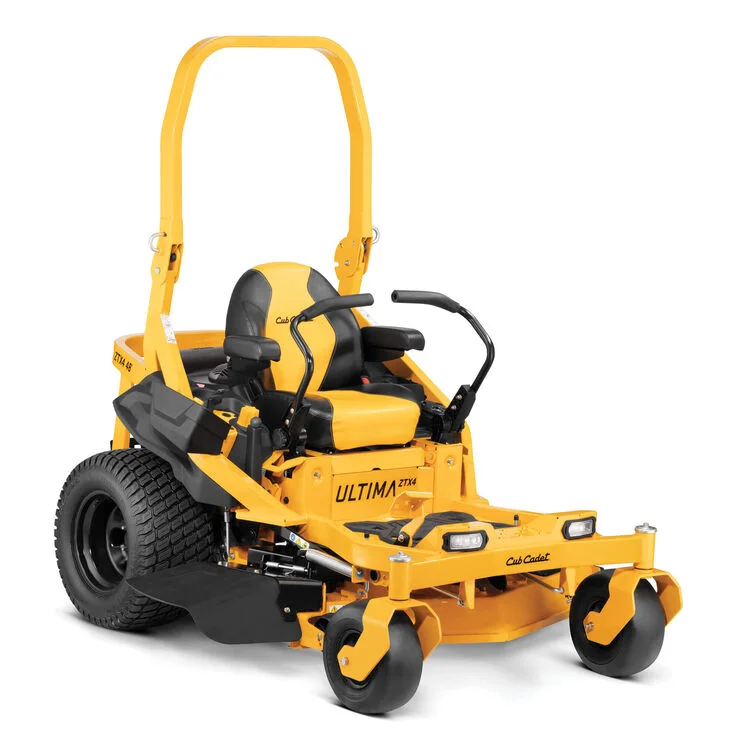

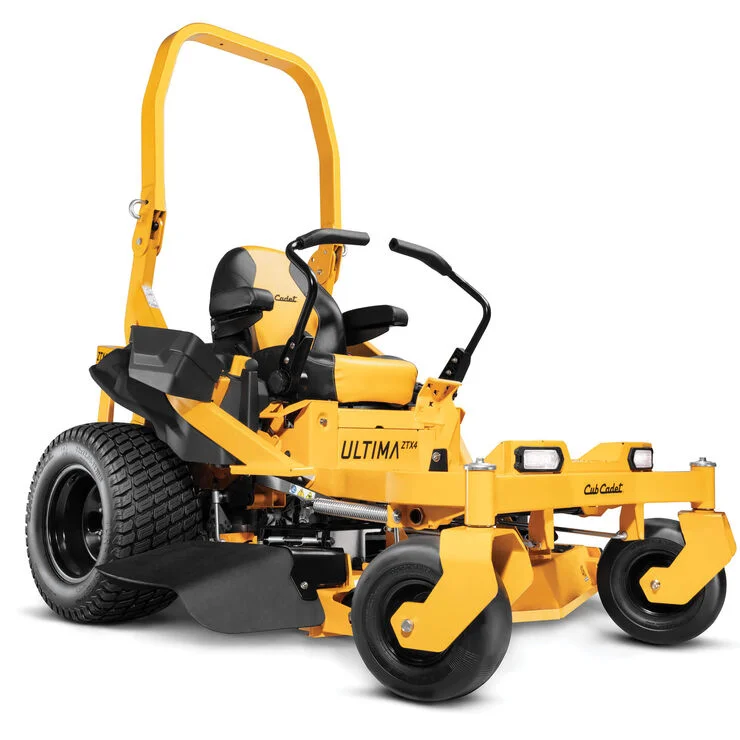

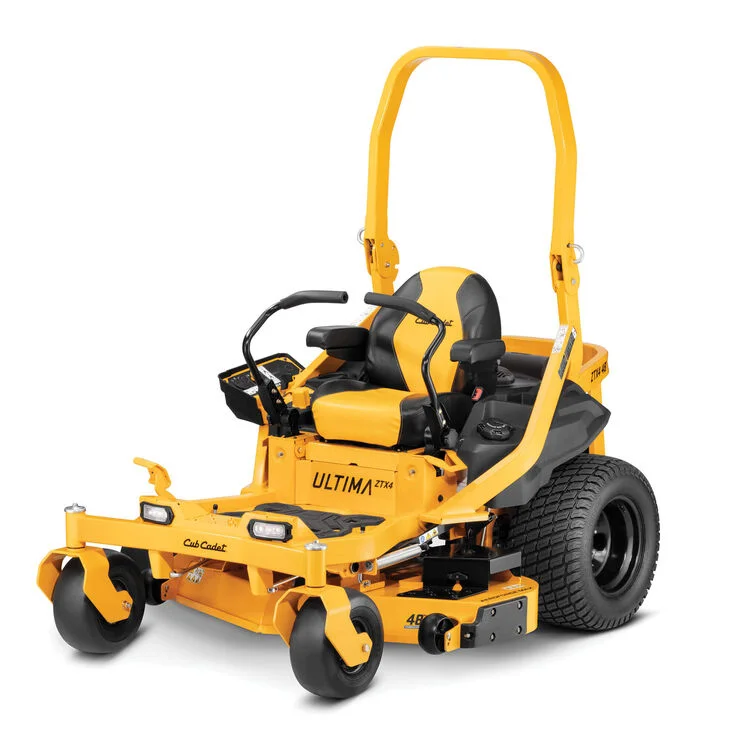

The Cub Cadet® Ultima Series ZTX4 48 is a 48-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower has 10-gauge reinforced steel, low-maintenance spindles, and smooth arc triple blades. Its deep dome deck design allows you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.
- 24 HP* 725cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
- Dual hydrostatic transmissions allow for up to 8 MPH forward (up to 3.5 MPH reverse) ground speeds
- A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
- 48 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with maintenance spindles smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provide excellent results, mows a wide area of grass is rust-resistant and helps provide your lawn with a clean, premium cut
Engine
-
Engine Brand
Kohler®
-
Engine Model
Pro 7000 series
-
Engine Model Number
KT735
-
Engine Displacement
725cc
-
Engine Output
24HP
-
Starter Type
Electric
-
Fuel Tank Capacity
5.5 gal. US (20.82 L)
-
Cylinders
Twin
-
Engine Start
Ignition Key
-
Engine Oil Capacity
2.0 qts. US (1.89 L)
-
Lubrication
Fully pressurized
-
Charging System
12 amp regulated
-
Fuel Gauge
No
-
Governor
Mechanical
-
Choke
Separate Choke
-
Air Filter
Dual element
-
Oil Filter
Yes
-
Fuel Delivery
Carburetor
Battery
-
Battery
210 CCA
-
Battery Type
AGM (Absorbent Glass Mat)
-
Battery Voltage
12V
Drive System
-
Transmission
Hydro-Gear ZT 3100
-
Forward Speed
8 MPH /12.9 km/h
-
Reverse Speed
3.5 MPH / 5.6 km/h
-
Drive System
Hydrostatic
Cutting Deck
-
Deck Cutting Width
48 in
-
Deck Wash
No
-
Deck Material
10-guage steel
-
Deck Engagement (PTO)
Electric
-
Deck Construction
Reinforced Fabricated
-
Blade(s)
Three
-
Deck Lift
Foot pedal with Dial Adjust
-
Cutting Height Range
1″ – 4.75″
-
Anti-Scalping
Three gauge wheels
-
Deck Positions
17
Chassis
-
Frame
1.5″ x 3″ tubular steel
-
Turning Radius
0°
-

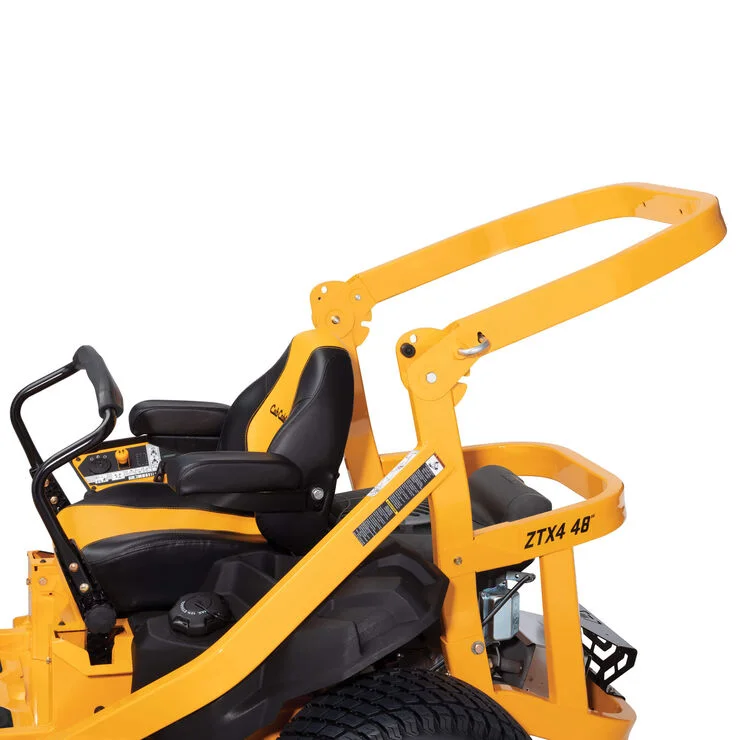

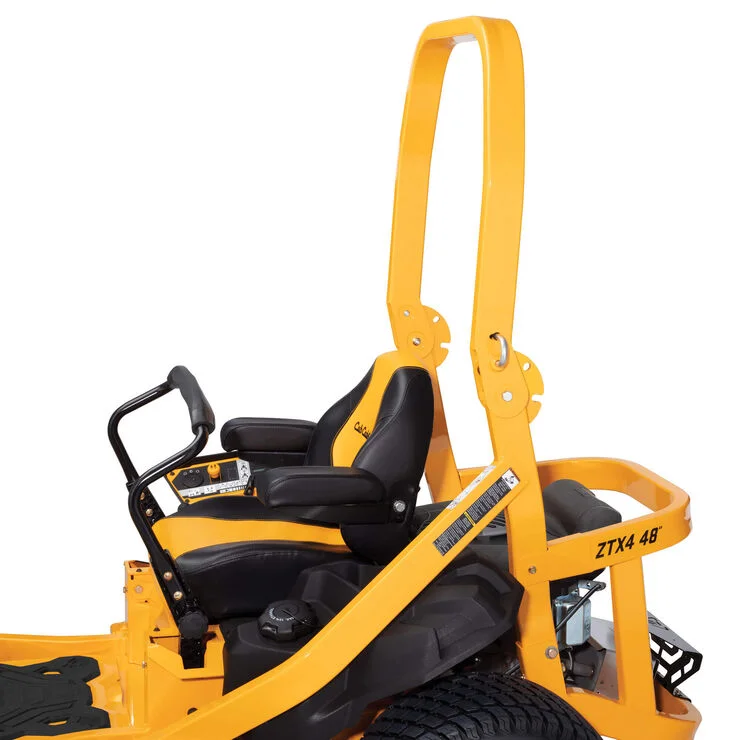

ROPS
Yes
-
Rear Tow Hitch
Yes
-
Corrosion Protection
Yes
Controls
-
Cruise Control
No
-
Brakes
Disc
-
Steering Control
Lap Bars
Comfort
-

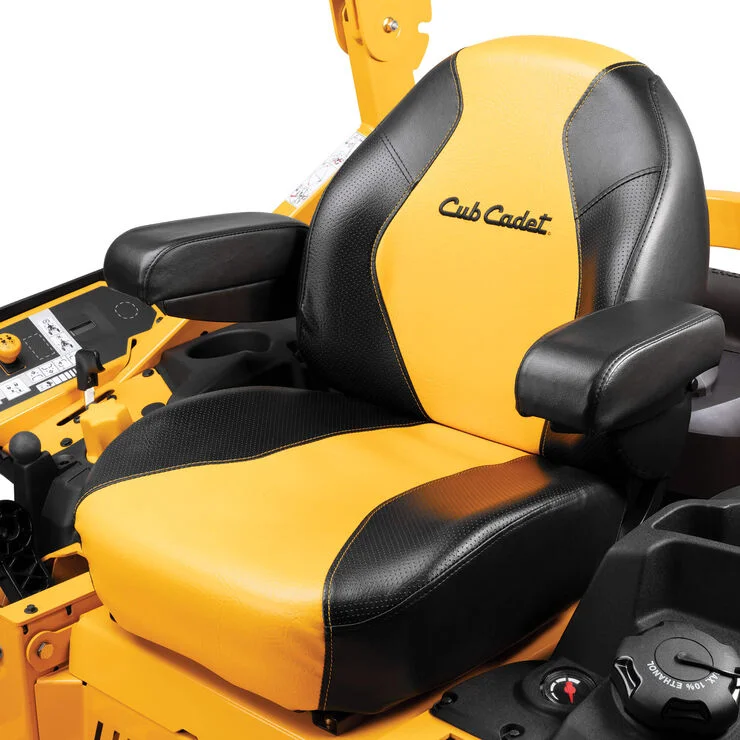

Seat Type
20″ high back
-
Armrests
Yes
-
Seat Adjustment
Lever
-
Front Caster Suspension
No
Wheels
-
Rear Tires
22″x 12″-12″
-
Front Tires
13″x 6.5″-6″
-
Tire Tread
Turf Master / Multi Trac
Specifications
-
Series
Ultima Series™ ZTX
Additional Specifications
-
Hour Meter
Yes
-

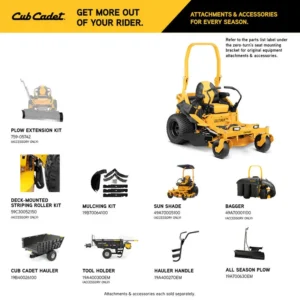

Mulch Kit
Available separately
-
Headlight(s)
Dual-LED
-
Cup Holder
Yes
-
Operator Presence System
Yes
-
Parking Brake
Lap Bar Integrated
-
Model Number
47TSAAA6A10
Warranty
-
Residential Warranty
4-year 800 hours
-
Frame Warranty
Lifetime limited
-
Deck Shell Warranty
Lifetime limited
-
Commercial Warranty
4-year 800 hours
Disclaimers
-
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower
As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
