ZTS1 42 – Ultima Series™ ZTS
In Stock
$4,899.00
FREE Shipping
Call Support
(813) 590-7469
Email Support
support@bravton.com
FREE Returns >
- 30-day Free Returns
- Refund for lost packages / damaged items
Professional Service >
- 12-months warranty
- Customer Support
Security & Privacy
×100% Secure payment
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don’t share your credit card details with third-party parties, and we don’t sell your information to others.
- Payment methods
- Security Certification
Rating & Accreditation
Our website boasts exceptional ratings, all based on genuine user feedback.
Secure privacy
We protect your privacy and keep your personal details safe and secure.

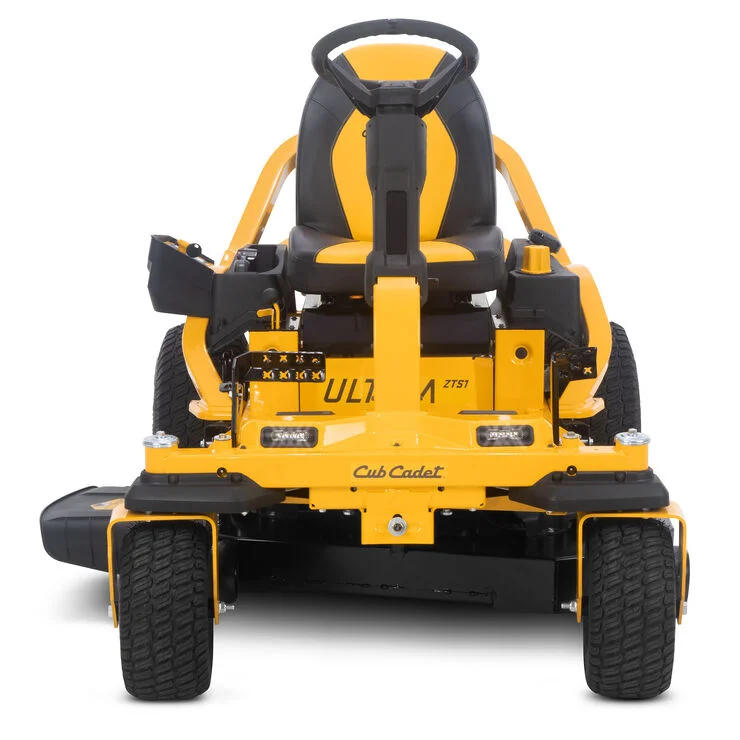

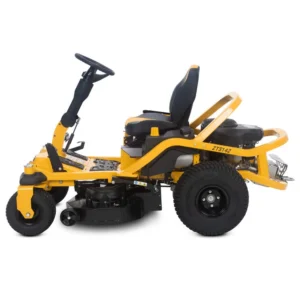

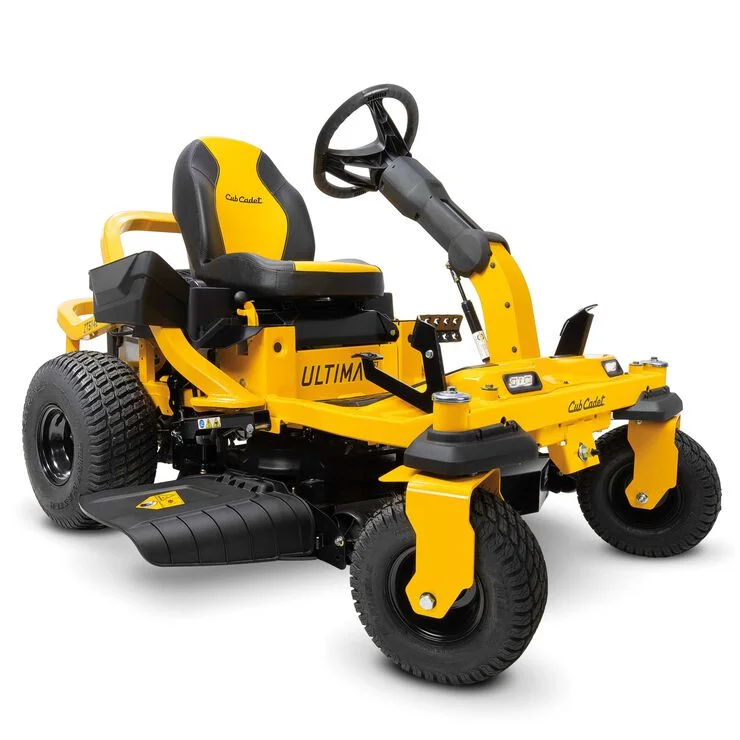

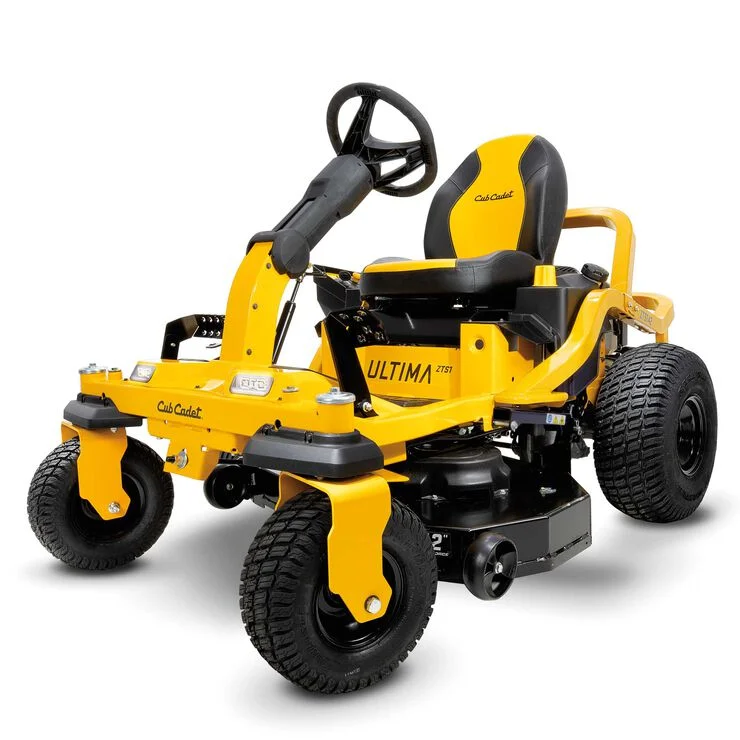

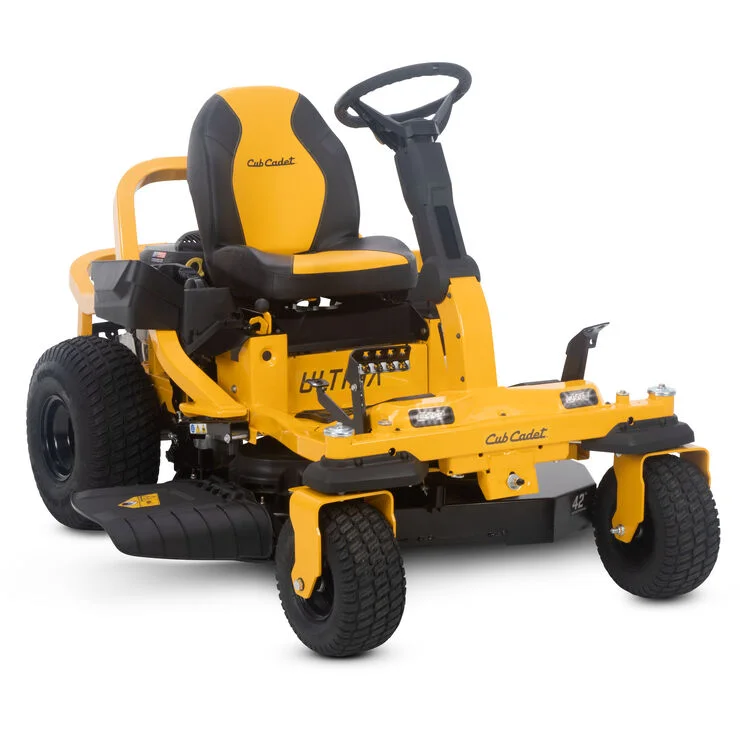

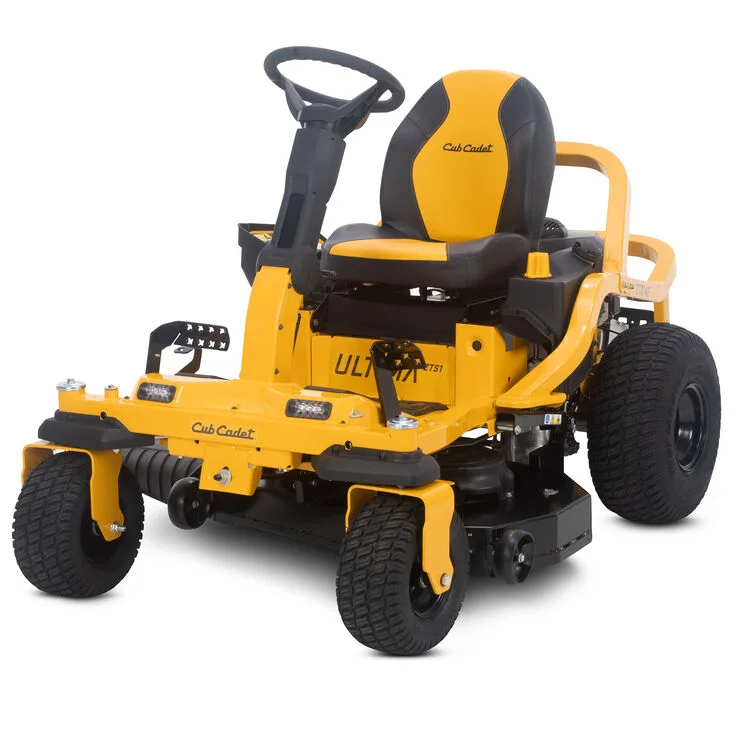

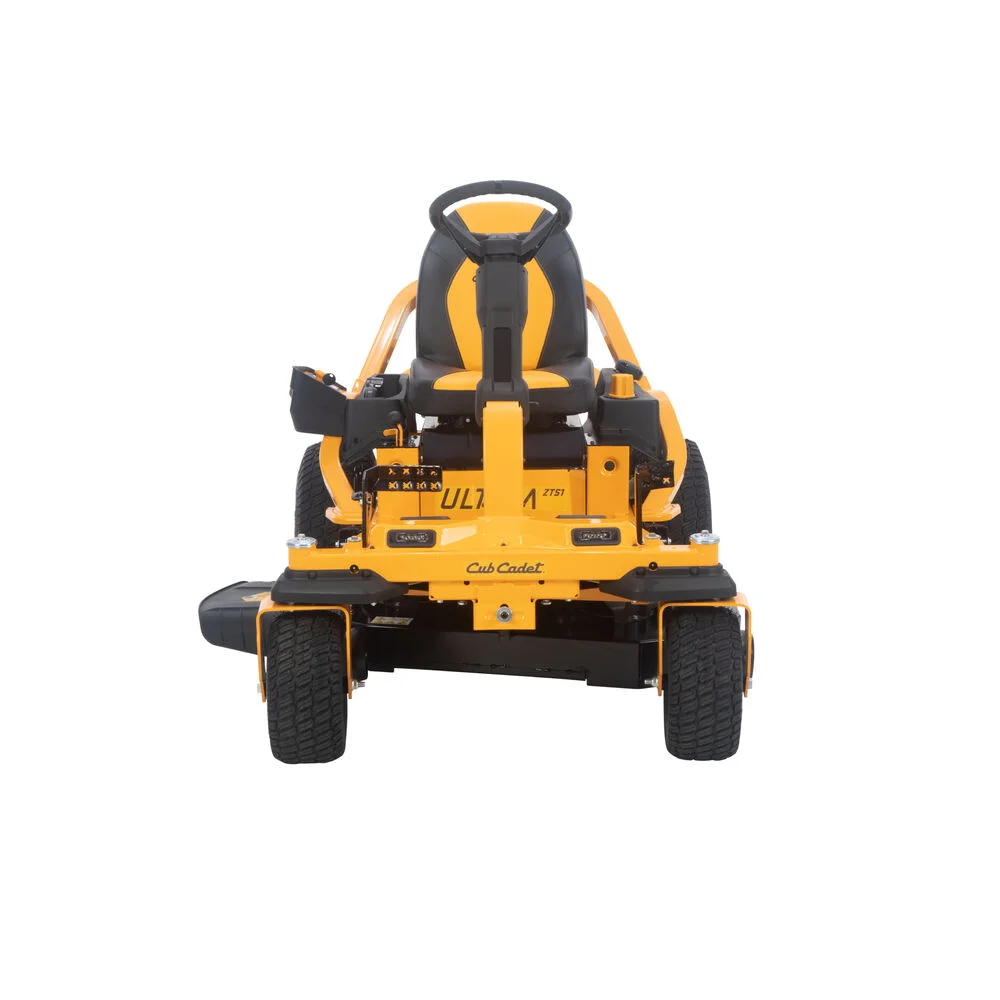

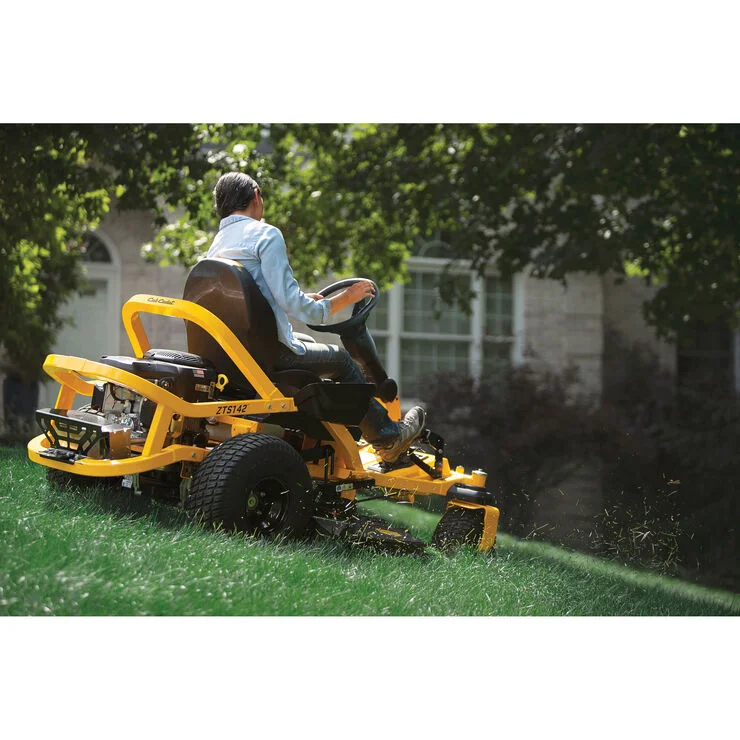

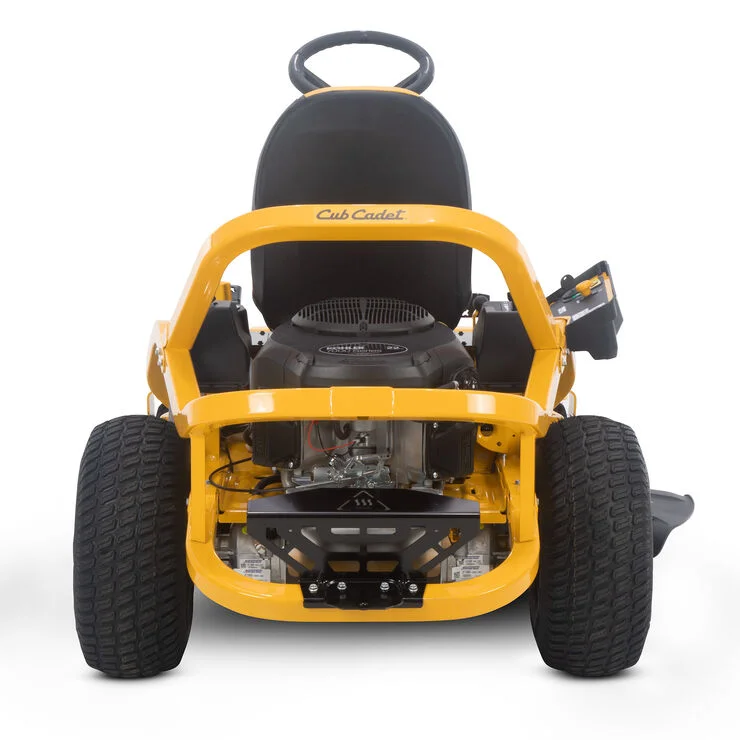

The Cub Cadet® Ultima Series ZTS1 42 is a 42-inch zero-turn lawn mower with a 22 HP engine, featuring an AeroForce™ fabricated deck and Synchro-Steer™ technology. It is designed to provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control, which helps provide stability for straight-line mowing on hills and slopes up to 20 degrees. The mower has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees

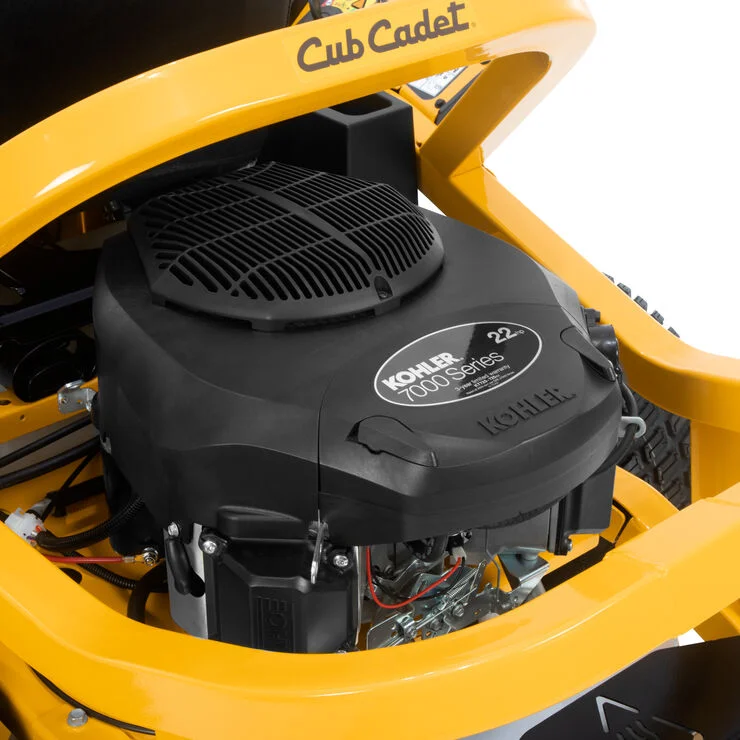

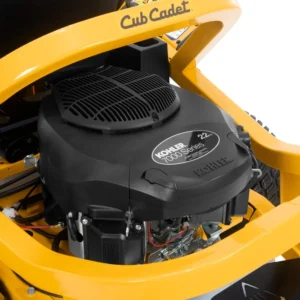

- A 22 HP*/747cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
- 42-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
Engine
-
Engine Brand
Kohler®
-
Engine Model
7000 Series
-
Engine Model Number
KT722
-
Engine Displacement
747cc
-
Engine Output
22HP
-
Starter Type
Electric
-
Fuel Tank Capacity
3.5 gal. US (13.25 L)
-
Cylinders
Twin
-
Engine Start
Ignition Key
-
Engine Oil Capacity
2.0 qt. US (1.89 L)
-
Lubrication
Fully pressurized
-
Charging System
12 amp regulated
-
Fuel Gauge
No
-
Governor
Mechanical
-
Choke
Separate Choke
-
Air Filter
Dual element
-
Oil Filter
Yes
-
Fuel Delivery
Carburetor
Battery
-
Battery
210 CCA
-
Battery Type
AGM (Absorbent Glass Mat)
-
Battery Voltage
12V
Drive System
-
Transmission
Hydro-Gear EZT 2200
-
Forward Speed
7 MPH / 11.3 km/h
-
Reverse Speed
3.5 MPH / 5.6 km/h
-
Drive System
Hydrostatic
Cutting Deck
-
Deck Cutting Width
42 in
-
Deck Wash
No
-
Deck Material
11-gauge steel
-
Deck Engagement (PTO)
Electric
-
Deck Construction
Fabricated
-
Blade(s)
2
-
Deck Lift
Foot pedal with Dial Adjust
-
Cutting Height Range
1” – 4.5”
-
Anti-Scalping
2 gauge wheels
-
Deck Positions
15
Chassis
-
Frame
2” x 2” tubular steel
-
Turning Radius
0°
-
ROPS
No
-
Rear Tow Hitch
Yes
-
Corrosion Protection
Yes
Controls
-
Cruise Control
No
-
Brakes
Disc
-
Steering Control
Steering Wheel
Comfort
-
Seat Type
20″ high back
-
Armrests
No
-
Seat Adjustment
Lever
-
Front Caster Suspension
No
Wheels
-

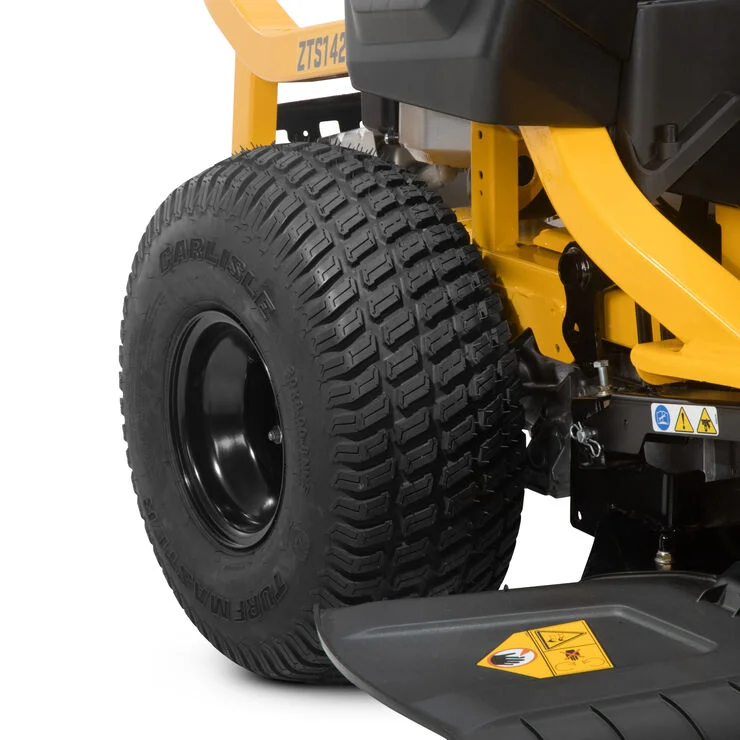

Rear Tires
20”x 8”-8″
-

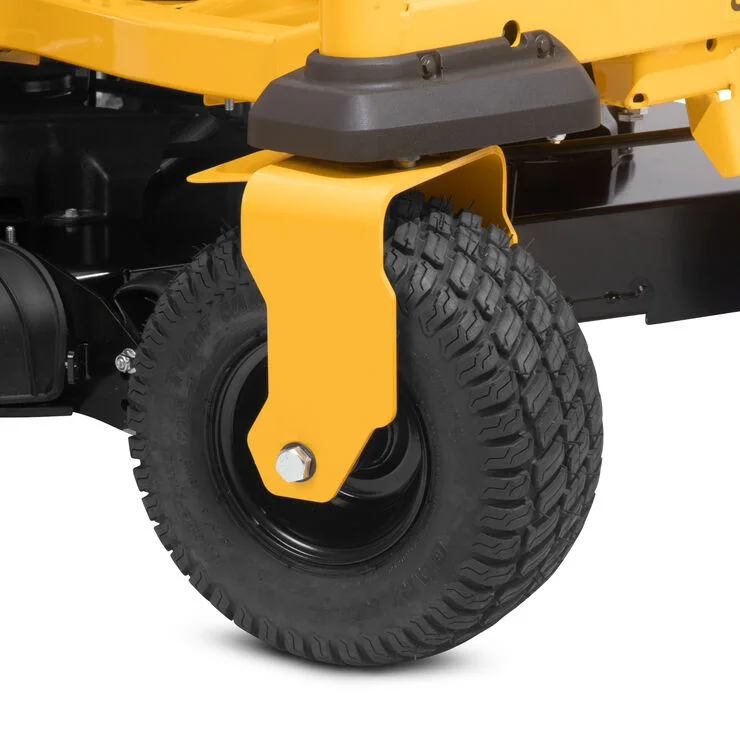

Front Tires
13″x 6.5″-6″
-
Tire Tread
Turf Master / Multi Trac
Specifications
-
Series
Ultima Series™ ZTS
Additional Specifications
-
Hour Meter
Available Separately
-
Mulch Kit
Available separately
-
Headlight(s)
Dual-LED
-
Cup Holder
Yes
-
Operator Presence System
Yes
-
Parking Brake
Hand Lever
-
Model Number
17ARGBYEA10
Warranty
-
Residential Warranty
3-year unlimited hours
-
Frame Warranty
Lifetime Limited
-
Deck Shell Warranty
Lifetime Limited
-
Commercial Warranty
No
Disclaimers
-
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower
As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
