PRO Z 754L – PRO Z 700 L SERIES
In Stock
$14,539.89
FREE Shipping
Call Support
(813) 590-7469
Email Support
support@bravton.com
FREE Returns >
- 30-day Free Returns
- Refund for lost packages / damaged items
Professional Service >
- 12-months warranty
- Customer Support
Security & Privacy
×100% Secure payment
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don’t share your credit card details with third-party parties, and we don’t sell your information to others.
- Payment methods
- Security Certification
Rating & Accreditation
Our website boasts exceptional ratings, all based on genuine user feedback.
Secure privacy
We protect your privacy and keep your personal details safe and secure.

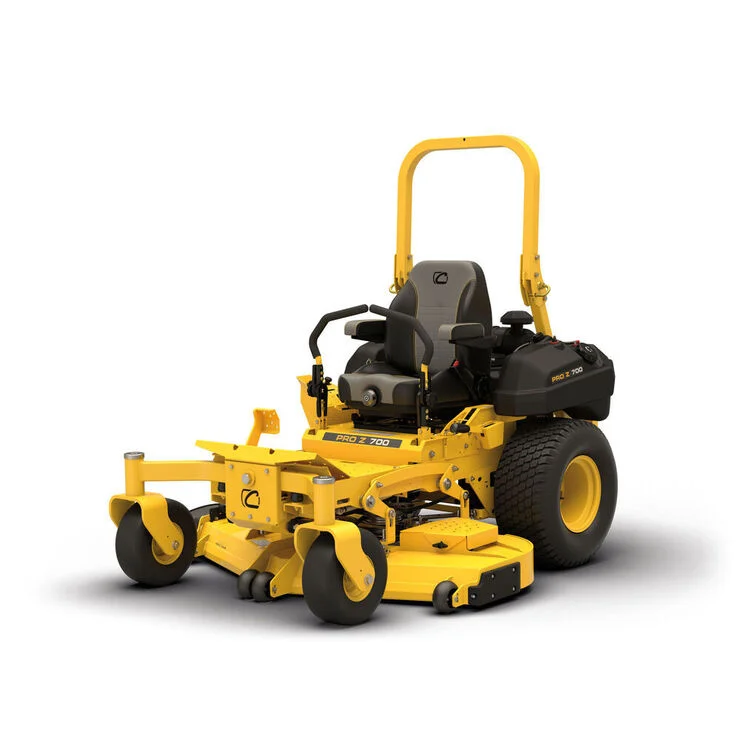

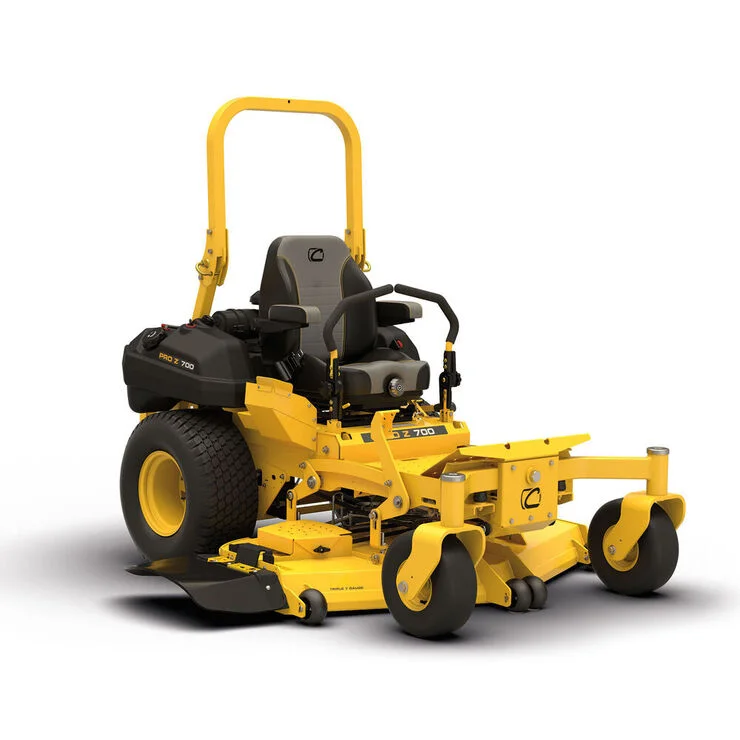

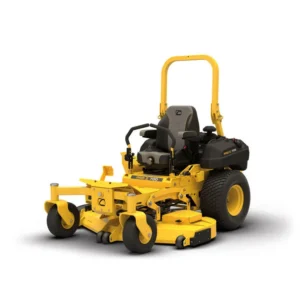

The Cub Cadet® PRO Z 754 L 54-in. 27 HP* Commercial Zero-Turn Lawn Mower features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Hydro-gear transmissions engineered for quick ground speeds and smooth handling.
- 27 HP Kawasaki FX850v (852cc) engine and 12cc Hydro-Gear 4400 transmission
- 54” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty
Engine
-
Engine Brand
Kawasaki®
-
Engine Model
FX Series
-
Engine Model Number
850V
-
Engine Displacement
852cc
-
Engine Output
27HP
-
Fuel Tank Capacity
Dual 7.45 gal. US (28.2 L)
-
Cylinders
Twin
-
Engine Start
Ignition Key
-
Engine Oil Capacity
2.0 qt. US (1.89 L)
-
Lubrication
Fully pressurized
-
Charging System
15 amp regulated
-
Choke
Separate Choke
-
Air Filter
High Density
-
Oil Filter
Yes
-
Fuel Delivery
Carburetor
Drive System
-
Transmission
12cc Hydro-Gear 4400
-
Forward Speed
12 mph / 19 km/h
-
Reverse Speed
6 mph / 9.5 km/h
Cutting Deck
-
Deck Cutting Width
54 in
-
Deck Material
fabricated 7ga. (.187”) steel shell
-
Deck Engagement (PTO)
electronic fingertip engagement pto
-
Deck Construction
7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
-
Spindle Construction
8″ sealed cast aluminum housing (maintenance-free)
-
Blade(s)
3 high-lift Marbain® blades / 18,500 fpm (approx.)
-
Cutting Height Range
1” to 5” in 1/4” increments
-
Anti-Scalping
2 front deck gauge wheels
-
Deck Positions
Foot pedal with spring assist 16 Positions
Chassis
-
Frame
Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
-
Front Axle
2″ x 3″ solid axle tube with ISO dampening suspension
-
ROPS
2″ x 2″ spring-latch tool-less foldable 3 position
-
Bumper
5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
-
Yokes
1/2″ thick steel front yokes
Controls
-
Cruise Control
NA
-
Brakes
Hand-operated
-
Steering Control
High Performance & Speed Control
Comfort
-
Seat Type
Cushion with seat belts
-
Armrests
Padded arm rests
-
Seat Suspension
High-back dial suspension with EVC, ISO mounted base (lateral suspension)
-
Seat Adjustment
Angle back adjust and lumbar support
Wheels
-
Rear Tires
24″x12″-12″
-
Front Tires
13″x6.5″-6″Reliance Carlisle run-flat
-
Tire Tread
Turf Tread
Additional Specifications
-
Hour Meter
Crew Boss
-
Discharge Chute
High-density, impact-resistant rubber
-
Cup Holder
Intergrated into Side Pod
-
Model Number
53TIHTTNA50
Warranty
-
Commercial Warranty
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
Disclaimers
-
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower
*As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Model |
|---|
Manual
Form Number
53TIHTTNA50
MANL:OPER:ENESFR:PRO Z XXXL
MANL:OPER:ENESFR:PRO Z XXXL
769-27003
Download
SHEET:SUP:BILING:EPA:EVP:2024
769-26892
Download
OPERATOR’S MANUALS
IMPORTANT INFORMATION – PLEASE READ CAREFULLY
The Operator’s Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator’s manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator’s Manual, could result in serious injury or death.
Important: Cub Cadet, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator’s Manual, some Operator’s Manuals are broken down into two or more segments so that the entire Operator’s Manual can be downloaded easily. Cub Cadet is requiring all those who wish to download a copy of the Operator’s Manual to acknowledge that he/she will download the portion of the Operator’s Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR’S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking “I AGREE” below, you certify that you have read and accepted the above notice.
