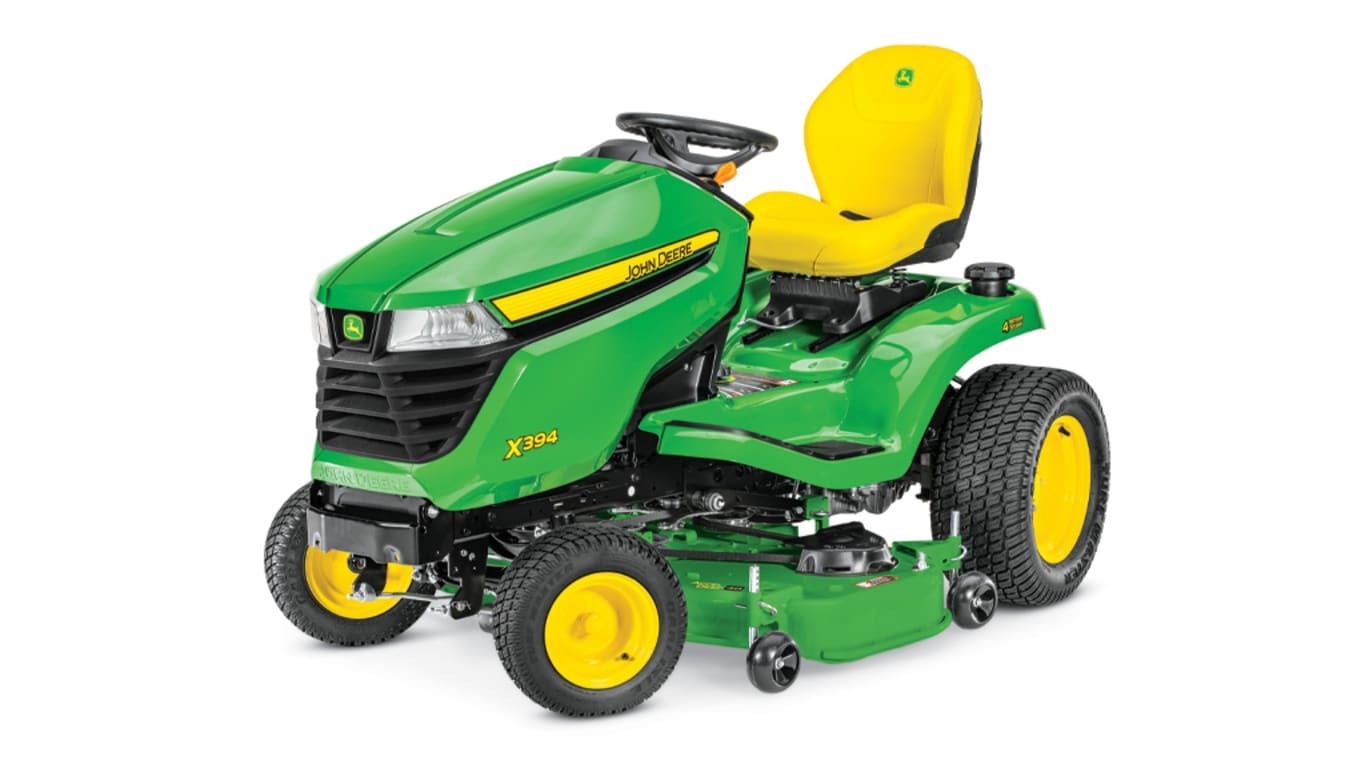

John Deere X394 Lawn Tractor, 48-in. Deck

In Stock

$7,599.00

FREE Shipping

Call Support

(813) 590-7469

Email Support

support@bravton.com

Security & Privacy >

100% Secure payment
Secure privacy

FREE Returns >

30-day Free Returns
Refund for lost packages / damaged items

Professional Service >

12-months warranty
Customer Support

Performance meets power.

Get a beautiful cut in a matter of minutes with the John Deere X394 Lawn Tractor. With the comfortable 18-inch cut-and-sewn standard seat* and mower deck options that cut clean, even passes at even faster speeds, it’s our riding mower lineup workhorse that you’ll love to saddle up. Tough enough to handle any job on your to-do list, you’ll get a quality cut all year round and a range of attachments to do, well, just about everything else there is to do in your yard.

There are millions of ways to make the most of your mow and if you don’t know where to start, the X300 Select Series Lawn Tractor is sure to steer you in the right direction. With its exclusive optional one-touch MulchControl™ technology, three different Accel Deep™ Mower Deck sizes to fit any size property, and the versatility to be useful in every season, making the most of your mow has never been easier. It’s time to take the hard work out of lawn work. And you’ve come to the right place to do just that.

Contact us today for more information on the John Deere X394 Lawn Tractor, and see why Van Wall has been proudly providing the Midwest with quality lawn & garden tractors for over 70 years!

23 hp (17.2 kW) iTorque™ Power System
48-Inch Accel Deep™ Mower Deck, Compatible with Optional One-Touch MulchControl™ Kit
Power Four-Wheel Steer
4-Year/300-Hour Bumper-to-Bumper Warranty

*Available on select models.

Features

Expand All
Collapse All

Engine is smooth running and reliable V-twin air-cooled design

23-hp (17.2-kW) V-twin engine

The tractor is powered by a John Deere iTorque power system, a combination of engine features and an exclusive hood design that provide superior lugging ability, even cooling, and durability.

A 23-hp (17.2-kW) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions.

Key engine features include:

23 hp (17.2 kW)
Large 44.3 cu in. (726-cc) displacement
V-twin air-cooled design that provides smooth, quiet power
Quality features include:
- Cast-iron cylinder liners
- Overhead valves
- Full-pressure lubrication
- Replaceable oil filter
Dual-stage air cleaner V-twin design:
- Excellent power and performance
- Easy starts
- Smooth operation

Flywheel alternator

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:

12-amp charging capacity
Regulated to keep the battery at full charge without risk of overcharging

Fuel tank has large, 3.3-U.S. gal. (12.5-L) capacity

Fuel tank

Electronic fuel gauge

Large fuel tank and convenient fuel gauge minimize the number of stops for fuel and chance of running out of fuel:

Fuel tank has a large, 3.3-U.S. gal. (12.5-L) capacity for more hours of operation between refills.
Large, 3-in. (7.6-cm) diameter fuel tank filler opening makes adding fuel easy.
- Located on the left fender
- Helps eliminate spillage
Electronic fuel gauge on the dash display allows the operator to easily monitor the amount of fuel in the tank.

48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile

X394 with Accel Deep 48A Mower Deck

Accel Deep 48A Mower Deck

The 48-in. (122-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

4.83-in. (12.3-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
- Optional lever-action or electric one-touch MulchControl™ system provides superior mulching performance and versatility.
Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck is suspended from the vehicle for a smooth and level cut
- Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Compatible with high-performance Power Flow™ material collection systems
For use on X330, X350, X354, X370, X380, X384, X390, X394, X570, X580, X584, and model year 2016 and newer X590 Tractors

Excellent cut quality

48A Mower Deck top (similar mower from X700 Series Tractor shown)

48A Mower Deck underside (similar mower from X700 Series Tractor shown)

Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
- Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck

Productivity – getting the job done fast

Right side of Accel Deep 48A Mower Deck

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
The 48A Power Flow blower has an inlet housing with over 50 percent greater area than the 48X Power Flow blower used on previous machines.

Cleanliness – for the mower and the operator

Accel Deep 48A Mower Deck

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:

There are few places to catch and hold material on top and underneath the deck.
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
- Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
- Less need to clean and remove buildup of material from underside deck
The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck:
- Limited amount of material to drift onto the operator and mower deck
- Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
- Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

Hose connector is included with the mower deck.

Superior durability is designed in

Spindle pocket with flip-up cover

Easy-to-adjust mower wheel and mower side reinforcement

The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

Stamped from strong 10-gauge, 0.135-in. (3.4-mm) steel
Ribs in the deck shell add strength where it is needed
The 48A has a 23 percent heavier overall weight than the Edge™ Xtra 48-in. (122-cm) Mower Deck used on previous machines.

Mower wheels are heavy duty:

Provides greater strength and durability for longer, trouble-free life.
Setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Mower blades

Side-discharge blades can be used with the Power Flow system when bagging.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.

Mower blade use chart

Mode(s) of operation	Mower blade
Side discharging mode only	Side-discharge blade (shipped with mower)
Mulching mode only	Mulching blade (shipped with MulchControl)
Side discharge and mulching	Mulching blade (shipped with MulchControl)
Bagging	Either side-discharge or mulching blade

Versatility – easy to change between side discharge, mulch, and bagging modes

The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

With an optional MulchControl system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever or push of an electric switch.
The Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever or electric one-touch switch to move the mulch baffle to the side-discharge position.

7-bu (247-L) Power Flow rear bagger

Optional rear bagger

Power Flow blower

An optional 7-bu (247-L) rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves:

The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
- 7-bu (247-L) capacity
- Easy-to-attach Power Flow blower (ordered separately)
- Easy-to-attach chute (ordered separately)
- Air exhaust duct
- Convenient spring-latch
- Airflow fill indicator
- Quik-Tatch mounting
- Sealed hopper top
- Loose-knit bags available

Larger 14-bu (493-L) and 19-bu (670-L) MCS are available, in addition to the 7-bu (247-L) MCS, for specific X300 and X500 Series Tractor models.

Four-year or 300-hour bumper-to-bumper warranty is standard

An exclusive 4-year or 300-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X300 Series Tractors.

The warranty is hassle free, with one company handling all of the paperwork.
Premium features of X300 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Four-wheel power steering gives superior maneuverability and trimming ability

Four-wheel steering versus two-wheel steering

Four-wheel steer maneuverability

NOTE: In the schematic above, the solid line refers to a four-wheel steer tractor, and the hashed line refers to a two-wheel steer tractor.

Four-wheel steering provides very significant maneuverability and trimming advantages over that of two-wheel-steering-equipped tractors.

For example, with the X394 Select Series™ Tractor equipped with a 48-in. (122-cm) Accel Deep™ Mower (the following numbers correspond to the schematic above):

Uncut circle radius is reduced from 24 in. (61 cm) for a two-wheel steer X390 to only 15 in. (38 cm) with an X394, eliminating or greatly reducing the need to back up when trimming around trees, shrubs, etc.
Interference from the mower and tractor wheels is eliminated because they are several inches away from the object being trimmed around.
Outside turning circle is reduced, reducing the time spent turning and increasing mowing efficiency.

Also, trimming inside curves around flower beds or other landscaping can be done more completely with a four-wheel steer tractor.

Designed for tight turns

The four-wheel steering system is designed for tight turns, leading to greater mowing efficiency:

Caster, camber, and kingpin angles are optimized to reduce effort, especially when going from straight ahead into a turn.
Steering geometry has been designed with the use of 3-D modeling, so all four tires are working together.
Sealed ball bearings are used on the torque shaft and the rear spindles to reduce friction.
Small scrub radius, less than 1 in. (2.5 cm) in the rear, reduces scuffing and bump-steer.

Designed for easy steering

Four-wheel manual steer illustration shown

Sealed ball bearings are used at critical all-wheel-steer joints for reduced friction, longer life, and less maintenance.

Easy steering is important for an enjoyable mowing experience:

Larger, 14-in. (35.6-cm) diameter steering wheel gives improved leverage for easier turns.
Ball-joints on both ends of the steering tie rods reduce wear to maintain accurate steering.
Greaseable front steering spindles reduce friction and improve wear over time.

Power steering enables easy turns

Power steering cylinder

Hydraulic power steering is standard equipment:

Provides effortless, automotive-like control
Reduces operator fatigue and increases productivity
Enables a tight turning radius for great maneuverability
Adjustable-tilt steering wheel for optimum operator comfort (X390 and X394 Tractor)

MulchControl™ system provides superior mulching performance and rapid conversion

Lever-action MulchControl lever (shown on 48A mower deck)

Electric one-touch MulchControl switch

The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

Creates a beautiful looking lawn
Smaller grass clippings disappear into the lawn canopy
Reduces fertilizer needs
Grass clippings are not blown onto the operator, driveways, or flower beds
No need to dispose of bags of clippings

How MulchControl works

MulchControl baffle open (shown on 48A mower deck)

MulchControl baffle closed (shown on 48A mower deck)

MulchControl is an innovative, simple design that is easy to use and maintain:

The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck.
The MulchControl handle, or an electric one-touch actuator, is on top of the mower deck and is used to open and close the MulchControl baffle.
When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl is well-suited to the following mowing situations:

For operators who usually mulch, but side discharge when grass gets too long
For operators who usually side discharge, but would like to close the chute to control clippings in some areas
For operators who always mulch a main lawn, but often side discharge secondary lawns
For operators who collect clippings but want to go farther before emptying the material collection system

MulchControl puts the operator in control of the clippings.

Electric one-touch MulchControl

Electric one-touch MulchControl systems shift the MulchControl baffle using an electric actuator that is operated by a dash-mounted switch.

Electric one-touch MulchControl switcht

Electric one-touch MulchControl actuator (shown on 42A mower deck)

Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:

When approaching driveways or flower beds where clippings would be undesirable
When a breeze blows clippings back onto the operator
For side discharge mowing only the areas of the property where grass is too thick for mulching
With 48A and 54A Mower Decks, for collecting only the areas of the property where grass is too tall or thick for mulching

MulchControl limitations

While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high growth conditions, such as those found in the Pacific Northwest United States
When optimum bagging and lawn cleanup is desired
42A Mower Deck requires a MulchControl baffle be removed to install the bagger chute

When bagging with MulchControl on a 48A or 54A mower deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.

Electric one-touch MulchControl attachments

Attachment	Description	Applications
BUC10164	42-in. (107-cm) Accel Deep electric one-touch MulchControl	Model year 2016 and newer X300 Series Tractors*
BUC10165	48-in. (122-cm) Accel Deep electric one-touch MulchControl	Model year 2016 and newer X300 and X500 Series Tractors*
BUC10166	54-in. (137-cm) Accel Deep electric one-touch MulchControl	Model year 2016 and newer X300 and X500 Series Tractors*

*NOTE: Model year 2016-2017 X300 and X500 Series Tractors (X300 serial number 10,001-50,000 and X500 serial number 110,001-130,000) require replacing the tractor wiring harness and dash panel to use an electric MulchControl attachment.

Rear baffle (A) must be removed for bagging with MulchControl with 42A mower decks

When bagging with MulchControl on a 42A mower deck, the cut-and-throw rear bagger can be used with the MulchControl blades. However, the rear MulchControl baffle (A) needs to be removed to install the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

MulchControl compatibility

Each MulchControl system is an optional field-installed attachment and includes everything needed: baffles, mulch blades, a handle (lever action attachments) or an actuator, wiring, and switches (electric one-touch attachments).

Lever-action MulchControl attachments

Attachment	Description	Applications
BUC10704	42-in. (107-cm) Accel Deep MulchControl (lever action)	Model year 2016 and newer X300 Series Tractors, Z300 Series ZTrak™ Mowers
BUC10705	48-in. (122-cm) Accel Deep MulchControl (lever action)	S240 Lawn Tractor, model year 2016 and newer X300 and X500 Series Tractors, Z300 and Z500 Series ZTrak Mowers
BUC10706	54-in. (137-cm) Accel Deep MulchControl (lever action)	Model year 2016 and newer X300 and X500 Series Tractors, Z300 and Z500 Series ZTrak Mowers

Snow removal is a strength of lawn tractors

44-in. (112-cm) Front Blade

Snow blower, weather enclosure, and chains on an X300 Series Tractor

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

44-in. (112-cm) Snow Blower
44-in. (112-cm) Front Blade
48-in. (122-cm) Front Blade (X394 Tractor only)
Tire chains or TerraGrip traction belts
Weather enclosure (available for all X300 Series, except the X350R)
Weights

Integrated hydrostatic transaxle efficiently transmits power to wheels

Kanzaki® K46 transaxle (X330, X350, X354) Kansaki K57 transaxle (X370)

Kanzaki K58 transaxle (X380, X384, X390, X394)

The Tuff Torq® hydrostatic transaxle encloses the hydrostatic pump and motor rotator groups in the same housing with the differential and axle housings. This design is very efficient and reduces the number of sealing surfaces to minimize the potential for leakage.

Combined with the foot controls, the hydrostatic transmission functions similarly to that of an automatic transmission in an automobile, so the term automatic is often used to describe it:

Use of the latest valve designs has significantly reduced the sound level.
Large pump and motor rotating groups ensure long life and efficient operation.

Freewheeling valve

A freewheeling valve control is conveniently located near the tractor rear hitch plate for good visibility and easy operation.

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Company.

Power steering and hydraulic lift enable easy operation

Power steering cylinder

Tilt steering lever (X390 and X394 only)

Hydraulic power steering is standard equipment:

Provides effortless, automotive-like control
Reduces operator fatigue and increases productivity
Enables a tight turning radius for great maneuverability
Adjustable-tilt steering wheel for optimum operator comfort (X390 and X394 Tractor)

Hydraulic lift system is easy to operate

Hydraulic lift

The hydraulic lift control lever is positioned on the dash near the steering wheel for quick, easy, and precise fingertip control of equipment. Implement float, which allows an implement to follow the ground contour, is built into the lift linkage.

Controls are convenient and easy to find

Convenient operator station

Separate throttle and choke controls

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

Controls are color coded for easy identification by the operator.
Controls are logically placed and easy to reach.
The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
The reverse implement option (RIO) switch is a yellow button.
The hydraulic-lift control and the park brake latch are pivot levers for low effort.
Cruise control activation is handled by an automotive-style button.
Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
- The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.

Functional design of the throttle and choke controls provides good appearance and a comfortable feel.

Easy-to-use key switch and controls

Tilt steering lever (X390 and X394 only)

The hydraulic-lift control and the park brake latch are pivot levers for low effort.
Cruise control activation is handled by an automotive-style button.
Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
- The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
Functional design of the throttle and choke controls provides good appearance and a comfortable feel.
Power steering takes the work out of turns.
Tilt steering wheel adjusts for operator comfort (X390, X394).

Display panel

Display panel illustration with descriptions

Display panel

Instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

Display features dark-cockpit design to minimize operator distractions.
Display is back lit for night visibility.
- Night visibility is especially useful with snow blower use.
Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
Electronic fuel gauge provides real-time fuel level information.
A tachometer graphically displays engine speed.
- Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
An indicator tells the operator when the PTO is operating.
Bright caution and stop lights capture the operator’s attention when important information is on the instrument cluster.
- Damage can be prevented and repair costs reduced by addressing problems early.
Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
- The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
Operators are advised if battery voltage is low, normal, or excessive.
The service indicator light illuminates to indicate a diagnostic error code is stored.
- Onboard diagnostics provides trouble codes for use by trained technicians.
  - For example, a technician will be able to test switch functionality and circuit continuity without tools.

Twin Touch™ foot control

Twin Touch foot control

Cruise control

Twin Touch foot pedals control the speed and direction of travel:

Automotive-type accelerator control ensures easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Cruise control

Cruise control is standard equipment:

To engage, push the cruise-control button and hold until the foot is removed from the forward pedal.
For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower cut-height adjusting knob

A rotary dial knob makes adjusting the mower cut height quick and easy:

Provides mower cut heights in 0.25-in. (6.4-cm) increments from 1 in. (2.5 cm) to 4 in. (10.2 cm)
Returns the mower deck to the same preset height each time it is lowered

Storage tray under tractor seat

Exact Adjust tool used to level mower deck

Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.

Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance.

Deck-leveling gauge placed under deck

Deck-leveling gauge is placed at the appropriate location under the left rear, right rear, and front of the mower deck as the cut height is adjusted using the Exact Adjust tool and front draft arm adjusting nuts.

Parking brake control

Parking brake

Depressing the brake pedal applies internal wet-disk brakes (increased durability and longer life) for safe stopping.

A parking brake control is conveniently located for easy access; it holds the brake pedal securely in locked position.

Electric PTO clutch is easy and convenient to use

Electric PTO switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Heavy-duty PTO clutch

PTO clutch

The PTO clutch is designed to operate through many on/off cycles.

RIO

Reverse implement switch

Mower engagement power take-off (PTO) switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

Carefully check the area around the machine.
Disengage the mower before backing up.

NOTE: Operating the mower while backing up is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

Stop forward travel. Allow attachment to run.
Look down and behind the machine to be sure that there are no bystanders.
Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
NOTE: If the attachment stops while positioning the machine, return mower engagement (PTO) switch to off position. Repeat this procedure from the beginning.
Release the reverse implement switch and reposition the machine as the machine begins to move rearward.
Resume forward travel. The attachment should continue operating.
Repeat procedure to position the machine again.

Frame is reliable heavy-duty welded steel

Welded, heavy-duty frame

The frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength:

The frame is formed from 12-gauge, 0.105-in. (2.66-mm) thick material for long life.
Standard front bumper and hitch plate are formed from 9-gauge, 0.15-in. (3.8-mm) steel and complete the frame assembly.
Rear hitch plate can support two 42-lb (19-kg) Quik-Tatch weights.
- Weight bracket is built into the frame of two-wheel-steer models.
- Four-wheel-steer models require the optional weight bracket.

Front axle and wheel spindles are heavy-duty

Cast-iron front axle

Front axle is made of nodular cast iron:

Cast-iron front axle is strong and shock resistant.
Cast iron will not yield under heavy loads or impact.

A replaceable bushing is used at axle mounting:

The bushing provides excellent wear resistance.
Grease fittings at each spindle are easy to service.

Front steering spindles

Steering spindle

Front steering spindle diameter is 0.75 in. (19 mm) for strength and long life:

Have strength to handle heavy implements
Provide long life at bearing surfaces
Use sealed precision bearings in front wheels

Rear equipment-mounting system is heavy-duty and easy to use

Rear equipment mounting system

A heavy-duty equipment mounting system is used:

Includes strong frame mounts with a combination of mounting holes in the tractor hitch plate that accept pins or shoulder bolts to support heavy rear-mounted equipment.
Easily attach optional equipment to the tractor
Can bear the load of heavy rear-mounted equipment, such as material collection systems

Modern styling with functional design enhances appearance and performance

Attractive styling

Hood air-intake louvers

Smooth, rounded contours present a modern, styled appearance:

Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top.
- Cooler engine operation
- Lower operator station sound levels
Hot air is vented out the front grille, away from the operator.
The fully enclosed hood is made of molded-in-color material.
- Reduces sound
- Will not rust or dent
Distinctive grille and large, one-piece fender deck complete the styling package.

Two high-quality headlights give excellent visibility

Optimum lighting pattern

Headlights are standard equipment on all models:

Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
A headlight position on the ignition switch makes it easy to operate the headlights.
The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

Operator station is comfortable and convenient

Operator station

The operator station is designed for operator comfort and ease of using controls:

A large, 14-in. (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
Full-length foot mats provide comfort for the operator and protect the footrest area.

Comfortable seat

Comfortable cut-and-sewn seat

Comfortable cut-and-sewn seat with optional armrests

An 18-in. (46-cm), high-back cut-and-sewn seat delivers a comfortable, smooth ride and excellent support for the operator:

A smoother, more comfortable ride results from the use of more foam than in a form-in-place seat and more side-bolstering to stabilize the operator on uneven terrain.
Improved visual appeal is provided by the thicker cushion, additional bolstering in the seat and back, and an embroidered John Deere logo that makes this upscale seat look as good as it feels.
Long-term pliability and less chance of cracking are advantages of the cut-and-sewn process, which does not require heating during the manufacturing process and gives a more uniform vinyl thickness.
Additional operator support and comfort is available with optional BM23761 armrests.
Reduced cost of repair, should the seat cover be damaged, is available with a replaceable seat cover available from Parts.
Seat travel of 6.6 in. (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls. Seat can be easily adjusted fore and aft by the operator while sitting on the seat.

Adjustable seat suspension

Seat suspension with springs in rear position

Seat suspension with springs in forward position

The seat suspension is adjustable, without tools, for the weight of the operator:

Springs are adjustable fore and aft to any of three positions.
- No tools required
- Allows fine-tuning of the suspension for the operator’s weight
- Back position for more support for heavier operators
Tool tray is designed into the seat base.
- Can be used to store gloves, small tools, etc.
- Provides storage location for Exact Adjust tool and deck-leveling gauge

Cup holder and toolbox

Cup holder and covered toolbox on fender

Covered toolbox with open cover

A cup holder and toolbox are located on the fender for operator convenience:

The cup holder holds a variety of container sizes.
Toolbox provides convenient storage.
- Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.

Removable plug for optional 12-V outlet

Location for optional 12-V outlet

A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.

Convenient for plugging in cell phone charger and other electric devices
- Can be used to operate electric rear equipment, such as a sprayer or spreader

12-V fast connector

Fast connector location

A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor:

The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

Serviceability is convenient with easy-open hood

One-piece hood is easy to open

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

Important service points are located within easy reach.
A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
- The high-quality engine used in the X300 Series does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.

Easy-to-service engine fuel and oil filters

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

Exact Adjust ports and onboard deck-leveling tools make precise deck adjustments easy

Deck-leveling gauge and hex adjusting tool stored under tractor seat

Exact Adjust access holes

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best-cut quality of cut.

The Exact Adjust feature is standard on all Select Series™ X300 and X500 Tractors:

There is no need to reach under the fender deck while making the mower-level adjustment.
Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
- Level the mower deck side to side
- Set the correct amount of rake (front-to-back deck orientation)
- Calibrate the cutting height to the cut-height adjusting knob setting
Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
- To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.

Deck-leveling tool placed under deck

Using included ball-hex tool to level mower deck

Consult the operator’s manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:

Park the tractor on a level surface.
Inflate tires to the correct pressure.
Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.

Cut height adjusting knob

Set mower cutting-height knob to the correct deck-leveling position.
Adjust mower wheels as necessary so they do not contact the ground surface.
Remove the onboard deck-leveling gauge that is located under the seat.
Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points will vary slightly between decks.
- Left- and right-rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
Adjust mower deck front-to-back level, if necessary.
- Loosen rear nuts equally on each side of front lift rod.
- Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
- Tighten rear nuts after adjustment is complete.
Return the gauge to its storage position.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key, part number M162737. The rounded end allows for some misalignment with the bolt as the deck is adjusted.

MowerPlus™ app helps maintain the tractor and lawn

MowerPlus app screen

MowerPlus app maintenance screen

Keep a John Deere riding lawn mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.

Look for the MowerPlus app on the mobile device’s app store.

The app supports residential lawn equipment such as 100 Series, S240, X300, X500, X700, Z200 through Z600, and many similarly sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.

NOTE: Some product image variation may exist.

Also available is the John Deere MowerPlus smart connector (sold separately).

Smart connector

The John Deere MowerPlus smart connector wirelessly links a Select Series™ X300 or X500 Tractor to the MowerPlus app on a mobile device. The smart connector transmits engine usage to the app, making it easy to track maintenance intervals. It also transmits the fuel level to the app—when thinking ahead about Saturday morning mowing, the operator can make sure the tractor is fueled and ready to go.

Show More
Show Less

Specs & Compare

ADD MODEL
–Please Select–

Add Model

ADD MODEL
–Please Select–

Select Different Model

Specs & Compare

Select up to 4 models to compare specifications

John Deere

X394

Lawn Tractor with 48-inch Deck

Export to Excel

1
2

Key Specs

Engine power	23 hp 17.2 kW
Oil change	No-tools oil drain with replaceable filter
Engine manufacturer/model	FR691V
Transaxle type	K58 hydrostatic integrated with transaxle
Transaxle control	Twin Touch™ pedals
Rear tires	22×9.5-12
Lift system type	Hydraulic
Cutting width	Accel Deep™ mower deck, 48 in. 122 cm
U.S. warranty	4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power	23 hp 17.2 kW
Displacement	44.3 cu in. 726 cc
Manufacturer/model	FR691V
Type	Overhead valve, full-pressure lube, oil filter
Cylinders	V-twin, cast-iron liners
Governor	Mechanical
Choke/speed control	Separate levers, automatic choke return
Cooling method	Air
Air cleaner	Dry, replaceable
Oil change	No-tools oil drain with replaceable filter

Fuel system

Type	Gasoline
Fuel delivery	Pulse pump, carburetor
Fuel gauge	Gauge on dash
Fuel tank location	Rear
Fuel fill opening	On left fender, 3 in. 7.6 cm
Fuel tank capacity	3.3 U.S. gal. 12.5 L

Electrical system

Battery	12 V 340 CCA
Charging system	Flywheel alternator, regulated, 12 amp
Engine starter	Bendix
Hourmeter	Yes
Headlights	Two standard, incandescent, 27 W
Taillights or reflector	No
Backup lights	No
Rear work lights	No
12-V outlet	Optional

Transaxle

Type	K58 hydrostatic integrated with transaxle
Control	Twin Touch™ pedals
Cruise control	Yes, button on dash
Oil cooler	Fins and fan on transaxle
Oil filter	Internal, not replaceable
Differential lock	No
Forward speed	0-6.2 mph 0-10 km/h
Reverse speed	0-3.5 mph 0-5.6 km/h
Brakes	Internal wet disc

Chassis

Frame	Welded heavy-duty
Primer/paint	E-coat/powder
Weight bracket	Optional front and rear
Receiver hitch	No
Front axle	Cast iron front axle, front wheel ball bearings
Spindle bushings	Metal, replaceable
Front tires	15×6.5-8
Rear tires	22×9.5-12
Hood material	Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material	Stamped steel
Floor mats	Sure-grip rubber
Storage	Yes, under seat and covered toolbox
Service interval decal	Yes
Fender handles/grips	No
Cup holder	Yes
Equipment mounting	Yes, heavy duty

Steering

Type	Power, hydraulic
Four-wheel steer	Yes
Steering wheel	Large, 14 in. 35.6 cm
Tilt steering wheel	Standard, five position
Turning radius	19 in. 48.3 cm
Uncut circle radius	15 in. 38 cm

Seat

Type	Cut-and-sewn high-back
Seat back height	18 in. 46 cm
Armrests	Optional
Fore-aft adjustment	While seated, slide rail, 15-position, 6.6 in. 17 cm
Seat suspension	Tilt, two coil springs, three-position no-tools adjustment for operator weight

Lift system

Type	Hydraulic
Hydraulic outlets	No
Mower cut height	13 positions, 1-4 in. 2.5-10.2 cm
Cut height increments	0.25 in. 0.64 cm
Preset cut height	Yes

Mower deck

Type	Side discharge
Cutting width	Accel Deep™ mower deck, 48 in. 122 cm
Construction	Stamped steel deck shell
Mower deck material	10 gauge 0.135 in. 3.4 mm
Mower wash port	Yes
Mower drive system	Electric power take-off (PTO) clutch, in-line belt
Mower wheels	Four
Mower wheel adjustment	Seven-position, spring-loaded pin
Mower level adjustment	Exact Adjust ports and onboard deck-leveling gauge

Mower attachability

Type	Roll under tractor
Front draft arms	Attached with spring pins at two points
Rear draft arms	Quick-pull pins
Mower wheels rotate	Yes, 90 degrees for easy mower removal
Drive system	Dual belt

Safety

Meets ANSI standard	Yes
Meets OPEI standard	Yes
Backup protection	Reverse Implement Option (RIO)
Safety video	Yes

Buyer’s notes

Notes	Fully enclosed, molded-in color material reduces sound, will not rust or dent 4-wheel steering for unmatched maneuverability and trimming capability Power steering with tilt steering wheel for exceptional maneuverability and comfort Hydraulic power lift for superior convenience and ease of use
Warranty	4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional equipment

Mowers	48A (standard)
Rear bagger	7, 19 bu 247, 670 L
Powered material collection	Power Flow™ blower
Mulching system	Yes, MulchControl™
Front thatcher	38, 46, 54 in. 96.5, 116.8, 137.2 cm
Front blade	44 in. 111.8 cm
Mid-mount blade
Snow blower	Two-stage, 44 in. 111.8 cm
Rotary broom
Rotary tiller
Sleeve hitch
3-point hitch
Rear power take-off (PTO)
Plow, moldboard
Box scraper
Cultivator
Rear blade
Disk harrow
Landscape rake
Sprayer	Tow-behind, 15 U.S. gal. 56.8 L Tow-behind, 25 U.S. gal. 94.6 L Mounted, 25 U.S. gal.
Spreader	Tow-behind, 125 lb 57.7 kg Tow-behind, 175 lb 79.4 kg Mounted, 125 lb
Front bumper	Styled bumper option
Brush guard	Yes
Weather protection	Weather enclosure
Sun canopy	Yes
Rear receiver hitch
Bucket holder	Yes, double bucket
Grass striping	Lawn striping kit
Tractor shovel	40 in. 101.6 cm
Front loader
Other equipment
Tow-behind tools	16

Dimensions

Height	49 in. 124 cm
Overall length	74 in. 188 cm
Wheelbase	51.2 in. 130 cm
Width with mower	62.5 in. 159 cm
Width with mower (deflector raised for storage)	53.6 in. 136 cm
Width without mower	45 in. 114 cm
Weight	Mower, no fuel: 755 lb 342 kg

Additional information

Manufacturing location	Horicon, Wisconsin, USA
Date collected	27-Jul-2020

Show More
Show Less

window.specificationData = {“relatedProducts”:[{“name”:”X330-42A (Model year 2021)”,”model”:”X330AM”,”id”:”x330am-x330-42a-(model-year-2021)”,”listName”:”X330-42A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”22 hp
16.4 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain hose with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”44J6 Cyclonic”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”22 hp
16.4 kW”},{“id”:”engine-displacement”,”value”:”44.2 cu in.
724 cc”},{“id”:”engine-manufacturer/model”,”value”:”44J6 Cyclonic”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain hose with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 14 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”26 in.
66 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”12 gauge
0.105 in.
2.7 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Two”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”No”},{“id”:”mower-attachability-drive-system”,”value”:”Single belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”42A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:””},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 542 lb
246 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X330-48A (Model year 2021)”,”model”:”X330BM”,”id”:”x330bm-x330-48a-(model-year-2021)”,”listName”:”X330-48A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”22 hp
16.4 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain hose with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”44J6 Cyclonic”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”22 hp
16.4 kW”},{“id”:”engine-displacement”,”value”:”44.2 cu in.
724 cc”},{“id”:”engine-manufacturer/model”,”value”:”44J6 Cyclonic”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain hose with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 14 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”21 in.
53.3 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 606 lb
275 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X350-42A (Model year 2021)”,”model”:”X350AM”,”id”:”x350am-x350-42a-(model-year-2021)”,”listName”:”X350-42A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”26 in.
66 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”12 gauge
0.105 in.
2.7 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Two”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”No”},{“id”:”mower-attachability-drive-system”,”value”:”Single belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”42A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:””},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 543 lb
246 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X350-48A (Model year 2021)”,”model”:”X350BM”,”id”:”x350bm-x350-48a-(model-year-2021)”,”listName”:”X350-48A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”21 in.
53.3 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 607 lb
275 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X350 less mower (Model year 2021)”,”model”:”X350CM”,”id”:”x350cm-x350-less-mower-(model-year-2021)”,”listName”:”X350 less mower (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck and mulch deck, 42 in.
107 cm
Accel Deep, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”42A mower, 26 in.
66 cm
48A mower, 21 in.
53.3 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge and mulch options”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck and mulch deck, 42 in.
107 cm
Accel Deep, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”42A and 42M, 12 gauge
0.105 in.
2.7 mm
48A, 10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”42A and 42M, two
48A, four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required (42A, 42M)”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”42A and 42M, no
48A, yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Single belt – 42A, Dual belt – 42M and 48A”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”42A, 48A, and 42 Mulch”},{“id”:”optional-equipment-rear-bagger”,”value”:”42A only, 2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower (48A)”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”42A, 50.5 in.
128 cm
42M, 44 in.
112 cm
48A, 62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”42A, 50.5 in.
128 cm
48A, 53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”With 42A mower, no fuel: 543 lb
246 kg
With 42M mower, no fuel: 556 lb
252 kg
With 48A mower, no fuel: 607 lb
275 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X350R-42R (Model year 2021)”,”model”:”X350RM”,”id”:”x350rm-x350r-42r-(model-year-2021)”,”listName”:”X350R-42R (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)”},{“id”:”key-specs-cutting-width”,”value”:”42 in.
107 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Low fuel indicator”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”2 U.S. gal.
7.6 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.3 mph
0-8.5 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, front”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16.5 in.
42 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”Right, 23 in.
58.4 cm
Left 28 in.
71.1 cm”},{“id”:”seat-type”,”value”:”Open-back design with grasp”},{“id”:”seat-seat-back-height”,”value”:”15 in.
38 cm”},{“id”:”seat-armrests”,”value”:”No”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-9.5 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Rear discharge, rear collect, mulch”},{“id”:”mower-deck-cutting-width”,”value”:”42 in.
107 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”11 gauge
0.12 in.
3 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Three”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”No”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Includes rear hopper and mulch plug, optional rear deflector available
Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”Rear discharge, rear collect (standard), 42 in.
107 cm”},{“id”:”optional-equipment-rear-bagger”,”value”:”Rear hopper, 8.5 bu
300 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:””},{“id”:”optional-equipment-mulching-system”,”value”:”Standard mulch plug”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:””},{“id”:”optional-equipment-sun-canopy”,”value”:””},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:””},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”46 in.
117 cm”},{“id”:”dimensions-overall-length”,”value”:”99 in.
251.4 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”43.8 in.
111 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:””},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 646 lb
293 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X354-42A (Model year 2021)”,”model”:”X354AM”,”id”:”x354am-x354-42a-(model-year-2021)”,”listName”:”X354-42A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-10″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K46 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.5 mph
0-8.9 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-4 mph
0-6.4 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Optional front and rear”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Yes”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”15 in.
38.1 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”15 in.
38.1 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with optional adjustable spring assist kit”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”12 gauge
0.105 in.
2.7 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Two”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”No”},{“id”:”mower-attachability-drive-system”,”value”:”Single belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
4-wheel steering for unmatched maneuverability and trimming capability
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”42A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:””},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-without-mower”,”value”:”41 in.
104.1 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 623 lb
283 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X370-42A (Model year 2021)”,”model”:”X370AM”,”id”:”x370am-x370-42a-(model-year-2021)”,”listName”:”X370-42A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR651V”},{“id”:”key-specs-transaxle-type”,”value”:”K57 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-8″},{“id”:”key-specs-lift-system-type”,”value”:”Hydraulic”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”21.5 hp
16 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR651V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K57 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.8 mph
0-9.3 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”Metal, replaceable”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-8″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Power, hydraulic”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”22 in.
55.9 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”30 in.
76 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Hydraulic”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 42 in.
107 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”12 gauge
0.105 in.
2.7 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Two”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Four-position, tool required”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Slide under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Two pins and spring clips”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”No”},{“id”:”mower-attachability-drive-system”,”value”:”Single belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Power steering for exceptional maneuverability and comfort
One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”42A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”2-bag, 7 bu
247 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:””},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”50.5 in.
128 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38 in.
96.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 570 lb
259 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X380-48A (Model year 2021)”,”model”:”X380AM”,”id”:”x380am-x380-48a-(model-year-2021)”,”listName”:”X380-48A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”22×11-10″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-6.2 mph
0-10 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6.5-8″},{“id”:”chassis-rear-tires”,”value”:”22×11-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”21 in.
53.3 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 25 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38.5 in.
97.8 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 651 lb
295 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X380-54A (Model year 2021)”,”model”:”X380BM”,”id”:”x380bm-x380-54a-(model-year-2021)”,”listName”:”X380-54A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”22×11-10″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 54 in.
137 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-6.2 mph
0-10 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6.5-8″},{“id”:”chassis-rear-tires”,”value”:”22×11-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”16 in.
40.6 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”18 in.
45.7 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 54 in.
137 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”54A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”68.4 in.
174 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”59.4 in.
151 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38.5 in.
97.8 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 659 lb
299 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X384-48A (Model year 2021)”,”model”:”X384AM”,”id”:”x384am-x384-48a-(model-year-2021)”,”listName”:”X384-48A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”20×10-10″},{“id”:”key-specs-lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-5.9 mph
0-9.5 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Optional front and rear”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”No”},{“id”:”chassis-front-tires”,”value”:”15×6-6″},{“id”:”chassis-rear-tires”,”value”:”20×10-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Manual, sector and pinion”},{“id”:”steering-four-wheel-steer”,”value”:”Yes”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”No”},{“id”:”steering-turning-radius”,”value”:”15 in.
38.1 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”9 in.
22.9 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Foot pedal with adjustable spring assist”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
4-wheel steering for unmatched maneuverability and trimming capability
Durable E-coat primer and powder-paint finish”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”41 in.
104.1 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 700 lb
318 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X390-48A (Model year 2021)”,”model”:”X390AM”,”id”:”x390am-x390-48a-(model-year-2021)”,”listName”:”X390-48A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”22×11-10″},{“id”:”key-specs-lift-system-type”,”value”:”Hydraulic”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-6.2 mph
0-10 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”Metal, replaceable”},{“id”:”chassis-front-tires”,”value”:”15×6.5-8″},{“id”:”chassis-rear-tires”,”value”:”22×11-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Power, hydraulic”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”Standard, five position”},{“id”:”steering-turning-radius”,”value”:”22 in.
55.9 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”24 in.
61 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Hydraulic”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Hydraulic power lift for superior convenience and ease of use
Power steering with tilt steering wheel for exceptional maneuverability and comfort
Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38.5 in.
97.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 678 lb
308 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]},{“name”:”X390-54A (Model year 2021)”,”model”:”X390BM”,”id”:”x390bm-x390-54a-(model-year-2021)”,”listName”:”X390-54A (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”22×11-10″},{“id”:”key-specs-lift-system-type”,”value”:”Hydraulic”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 54 in.
137 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-6.2 mph
0-10 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Standard rear, optional front”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”Metal, replaceable”},{“id”:”chassis-front-tires”,”value”:”15×6.5-8″},{“id”:”chassis-rear-tires”,”value”:”22×11-10″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Power, hydraulic”},{“id”:”steering-four-wheel-steer”,”value”:”Not available on this model”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”Standard, five position”},{“id”:”steering-turning-radius”,”value”:”22 in.
55.9 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”22 in.
56 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Hydraulic”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 54 in.
137 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Hydraulic power lift for superior convenience and ease of use
Power steering with tilt steering wheel for exceptional maneuverability and comfort
Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”54A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”72 in.
182.9 cm”},{“id”:”dimensions-wheelbase”,”value”:”49.4 in.
125.5 cm”},{“id”:”dimensions-width-with-mower”,”value”:”68.4 in.
174 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”59.4 in.
151 cm”},{“id”:”dimensions-width-without-mower”,”value”:”38.5 in.
97.5 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 686 lb
311 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]}],”closestComparison”:[],”currentModel”:{“name”:”Lawn Tractor with 48-inch Deck”,”model”:”X394″,”id”:”Current Model ID”,”detailURL”:”#”,”listName”:”Lawn Tractor with 48-inch Deck”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”key-specs-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”key-specs-engine-manufacturer/model”,”value”:”FR691V”},{“id”:”key-specs-transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”key-specs-transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”key-specs-rear-tires”,”value”:”22×9.5-12″},{“id”:”key-specs-lift-system-type”,”value”:”Hydraulic”},{“id”:”key-specs-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”key-specs-u.s.-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”engine-power”,”value”:”23 hp
17.2 kW”},{“id”:”engine-displacement”,”value”:”44.3 cu in.
726 cc”},{“id”:”engine-manufacturer/model”,”value”:”FR691V”},{“id”:”engine-type”,”value”:”Overhead valve, full-pressure lube, oil filter”},{“id”:”engine-cylinders”,”value”:”V-twin, cast-iron liners”},{“id”:”engine-governor”,”value”:”Mechanical”},{“id”:”engine-choke/speed-control”,”value”:”Separate levers, automatic choke return”},{“id”:”engine-cooling-method”,”value”:”Air”},{“id”:”engine-air-cleaner”,”value”:”Dry, replaceable”},{“id”:”engine-oil-change”,”value”:”No-tools oil drain with replaceable filter”},{“id”:”fuel-system-type”,”value”:”Gasoline”},{“id”:”fuel-system-fuel-delivery”,”value”:”Pulse pump, carburetor”},{“id”:”fuel-system-fuel-gauge”,”value”:”Gauge on dash”},{“id”:”fuel-system-fuel-tank-location”,”value”:”Rear”},{“id”:”fuel-system-fuel-fill-opening”,”value”:”On left fender, 3 in.
7.6 cm”},{“id”:”fuel-system-fuel-tank-capacity”,”value”:”3.3 U.S. gal.
12.5 L”},{“id”:”electrical-system-battery”,”value”:”12 V
340 CCA”},{“id”:”electrical-system-charging-system”,”value”:”Flywheel alternator, regulated, 12 amp”},{“id”:”electrical-system-engine-starter”,”value”:”Bendix”},{“id”:”electrical-system-hourmeter”,”value”:”Yes”},{“id”:”electrical-system-headlights”,”value”:”Two standard, incandescent, 27 W”},{“id”:”electrical-system-taillights-or-reflector”,”value”:”No”},{“id”:”electrical-system-backup-lights”,”value”:”No”},{“id”:”electrical-system-rear-work-lights”,”value”:”No”},{“id”:”electrical-system-12-v-outlet”,”value”:”Optional”},{“id”:”transaxle-type”,”value”:”K58 hydrostatic integrated with transaxle”},{“id”:”transaxle-control”,”value”:”Twin Touch™ pedals”},{“id”:”transaxle-cruise-control”,”value”:”Yes, button on dash”},{“id”:”transaxle-oil-cooler”,”value”:”Fins and fan on transaxle”},{“id”:”transaxle-oil-filter”,”value”:”Internal, not replaceable”},{“id”:”transaxle-differential-lock”,”value”:”No”},{“id”:”transaxle-forward-speed”,”value”:”0-6.2 mph
0-10 km/h”},{“id”:”transaxle-reverse-speed”,”value”:”0-3.5 mph
0-5.6 km/h”},{“id”:”transaxle-brakes”,”value”:”Internal wet disc”},{“id”:”chassis-frame”,”value”:”Welded heavy-duty”},{“id”:”chassis-primer/paint”,”value”:”E-coat/powder”},{“id”:”chassis-weight-bracket”,”value”:”Optional front and rear”},{“id”:”chassis-receiver-hitch”,”value”:”No”},{“id”:”chassis-front-axle”,”value”:”Cast iron front axle, front wheel ball bearings”},{“id”:”chassis-spindle-bushings”,”value”:”Metal, replaceable”},{“id”:”chassis-front-tires”,”value”:”15×6.5-8″},{“id”:”chassis-rear-tires”,”value”:”22×9.5-12″},{“id”:”chassis-hood-material”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent”},{“id”:”chassis-fender-deck-material”,”value”:”Stamped steel”},{“id”:”chassis-floor-mats”,”value”:”Sure-grip rubber”},{“id”:”chassis-storage”,”value”:”Yes, under seat and covered toolbox”},{“id”:”chassis-service-interval-decal”,”value”:”Yes”},{“id”:”chassis-fender-handles/grips”,”value”:”No”},{“id”:”chassis-cup-holder”,”value”:”Yes”},{“id”:”chassis-equipment-mounting”,”value”:”Yes, heavy duty”},{“id”:”steering-type”,”value”:”Power, hydraulic”},{“id”:”steering-four-wheel-steer”,”value”:”Yes”},{“id”:”steering-steering-wheel”,”value”:”Large, 14 in.
35.6 cm”},{“id”:”steering-tilt-steering-wheel”,”value”:”Standard, five position”},{“id”:”steering-turning-radius”,”value”:”19 in.
48.3 cm”},{“id”:”steering-uncut-circle-radius”,”value”:”15 in.
38 cm”},{“id”:”seat-type”,”value”:”Cut-and-sewn high-back”},{“id”:”seat-seat-back-height”,”value”:”18 in.
46 cm”},{“id”:”seat-armrests”,”value”:”Optional”},{“id”:”seat-fore-aft-adjustment”,”value”:”While seated, slide rail, 15-position, 6.6 in.
17 cm”},{“id”:”seat-seat-suspension”,”value”:”Tilt, two coil springs, three-position no-tools adjustment for operator weight”},{“id”:”lift-system-type”,”value”:”Hydraulic”},{“id”:”lift-system-hydraulic-outlets”,”value”:”No”},{“id”:”lift-system-mower-cut-height”,”value”:”13 positions, 1-4 in.
2.5-10.2 cm”},{“id”:”lift-system-cut-height-increments”,”value”:”0.25 in.
0.64 cm”},{“id”:”lift-system-preset-cut-height”,”value”:”Yes”},{“id”:”mower-deck-type”,”value”:”Side discharge”},{“id”:”mower-deck-cutting-width”,”value”:”Accel Deep™ mower deck, 48 in.
122 cm”},{“id”:”mower-deck-construction”,”value”:”Stamped steel deck shell”},{“id”:”mower-deck-mower-deck-material”,”value”:”10 gauge
0.135 in.
3.4 mm”},{“id”:”mower-deck-mower-wash-port”,”value”:”Yes”},{“id”:”mower-deck-mower-drive-system”,”value”:”Electric power take-off (PTO) clutch, in-line belt”},{“id”:”mower-deck-mower-wheels”,”value”:”Four”},{“id”:”mower-deck-mower-wheel-adjustment”,”value”:”Seven-position, spring-loaded pin”},{“id”:”mower-deck-mower-level-adjustment”,”value”:”Exact Adjust ports and onboard deck-leveling gauge”},{“id”:”mower-attachability-type”,”value”:”Roll under tractor”},{“id”:”mower-attachability-front-draft-arms”,”value”:”Attached with spring pins at two points”},{“id”:”mower-attachability-rear-draft-arms”,”value”:”Quick-pull pins”},{“id”:”mower-attachability-mower-wheels-rotate”,”value”:”Yes, 90 degrees for easy mower removal”},{“id”:”mower-attachability-drive-system”,”value”:”Dual belt”},{“id”:”safety-meets-ansi-standard”,”value”:”Yes”},{“id”:”safety-meets-opei-standard”,”value”:”Yes”},{“id”:”safety-backup-protection”,”value”:”Reverse Implement Option (RIO)”},{“id”:”safety-safety-video”,”value”:”Yes”},{“id”:”buyer’s-notes-notes”,”value”:”Fully enclosed, molded-in color material reduces sound, will not rust or dent
4-wheel steering for unmatched maneuverability and trimming capability
Power steering with tilt steering wheel for exceptional maneuverability and comfort
Hydraulic power lift for superior convenience and ease of use”},{“id”:”buyer’s-notes-warranty”,”value”:”4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)”},{“id”:”optional-equipment-mowers”,”value”:”48A (standard)”},{“id”:”optional-equipment-rear-bagger”,”value”:”7, 19 bu
247, 670 L”},{“id”:”optional-equipment-powered-material-collection”,”value”:”Power Flow™ blower”},{“id”:”optional-equipment-mulching-system”,”value”:”Yes, MulchControl™”},{“id”:”optional-equipment-front-thatcher”,”value”:”38, 46, 54 in.
96.5, 116.8, 137.2 cm”},{“id”:”optional-equipment-front-blade”,”value”:”44 in.
111.8 cm”},{“id”:”optional-equipment-mid-mount-blade”,”value”:””},{“id”:”optional-equipment-snow-blower”,”value”:”Two-stage, 44 in.
111.8 cm”},{“id”:”optional-equipment-rotary-broom”,”value”:””},{“id”:”optional-equipment-rotary-tiller”,”value”:””},{“id”:”optional-equipment-sleeve-hitch”,”value”:””},{“id”:”optional-equipment-3-point-hitch”,”value”:””},{“id”:”optional-equipment-rear-power-take-off-(pto)”,”value”:””},{“id”:”optional-equipment-plow,-moldboard”,”value”:””},{“id”:”optional-equipment-box-scraper”,”value”:””},{“id”:”optional-equipment-cultivator”,”value”:””},{“id”:”optional-equipment-rear-blade”,”value”:””},{“id”:”optional-equipment-disk-harrow”,”value”:””},{“id”:”optional-equipment-landscape-rake”,”value”:””},{“id”:”optional-equipment-sprayer”,”value”:”Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Mounted, 25 U.S. gal.”},{“id”:”optional-equipment-spreader”,”value”:”Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Mounted, 125 lb”},{“id”:”optional-equipment-front-bumper”,”value”:”Styled bumper option”},{“id”:”optional-equipment-brush-guard”,”value”:”Yes”},{“id”:”optional-equipment-weather-protection”,”value”:”Weather enclosure”},{“id”:”optional-equipment-sun-canopy”,”value”:”Yes”},{“id”:”optional-equipment-rear-receiver-hitch”,”value”:””},{“id”:”optional-equipment-bucket-holder”,”value”:”Yes, double bucket”},{“id”:”optional-equipment-grass-striping”,”value”:”Lawn striping kit”},{“id”:”optional-equipment-tractor-shovel”,”value”:”40 in.
101.6 cm”},{“id”:”optional-equipment-front-loader”,”value”:””},{“id”:”optional-equipment-other-equipment”,”value”:””},{“id”:”optional-equipment-tow-behind-tools”,”value”:”16″},{“id”:”dimensions-height”,”value”:”49 in.
124 cm”},{“id”:”dimensions-overall-length”,”value”:”74 in.
188 cm”},{“id”:”dimensions-wheelbase”,”value”:”51.2 in.
130 cm”},{“id”:”dimensions-width-with-mower”,”value”:”62.5 in.
159 cm”},{“id”:”dimensions-width-with-mower-(deflector-raised-for-storage)”,”value”:”53.6 in.
136 cm”},{“id”:”dimensions-width-without-mower”,”value”:”45 in.
114 cm”},{“id”:”dimensions-weight”,”value”:”Mower, no fuel: 755 lb
342 kg”},{“id”:”additional-information-manufacturing-location”,”value”:”Horicon, Wisconsin, USA”},{“id”:”additional-information-date-collected”,”value”:”27-Jul-2020″}]}} ;

John Deere X394 Lawn Tractor, 48-in. Deck

Security & Privacy >

FREE Returns >

Professional Service >

Security & Privacy

100% Secure payment

Rating & Accreditation

Secure privacy

FREE Returns

30-day Free Returns

Refund for lost packages / damaged items

Professional Service

12-months warranty

Customer Support

Performance meets power.

Features

Flywheel alternator

Fuel tank has large, 3.3-U.S. gal. (12.5-L) capacity

Excellent cut quality

Productivity – getting the job done fast

Cleanliness – for the mower and the operator

Superior durability is designed in

Mower blades

Versatility – easy to change between side discharge, mulch, and bagging modes

7-bu (247-L) Power Flow rear bagger

Designed for tight turns

Designed for easy steering

Power steering enables easy turns

How MulchControl works

Electric one-touch MulchControl

MulchControl limitations

Electric one-touch MulchControl attachments

MulchControl compatibility

Lever-action MulchControl attachments

Freewheeling valve

Hydraulic lift system is easy to operate

Display panel

Twin Touch™ foot control

Cruise control

Mower deck height adjustment

Parking brake control

Electric PTO clutch is easy and convenient to use

Heavy-duty PTO clutch

RIO

Using RIO

Front axle and wheel spindles are heavy-duty

Front steering spindles

Rear equipment-mounting system is heavy-duty and easy to use

Two high-quality headlights give excellent visibility

Comfortable seat

Adjustable seat suspension

Cup holder and toolbox

Removable plug for optional 12-V outlet

12-V fast connector

Exact Adjust ports and onboard deck-leveling tools make precise deck adjustments easy

Specs & Compare

Add Model

Key Specs

Engine

Fuel system

Electrical system

Transaxle

Chassis

Steering

Seat

Lift system

Mower deck

Mower attachability

Safety

Buyer’s notes

Optional equipment

Dimensions

Additional information

Login
